MiGi Premium

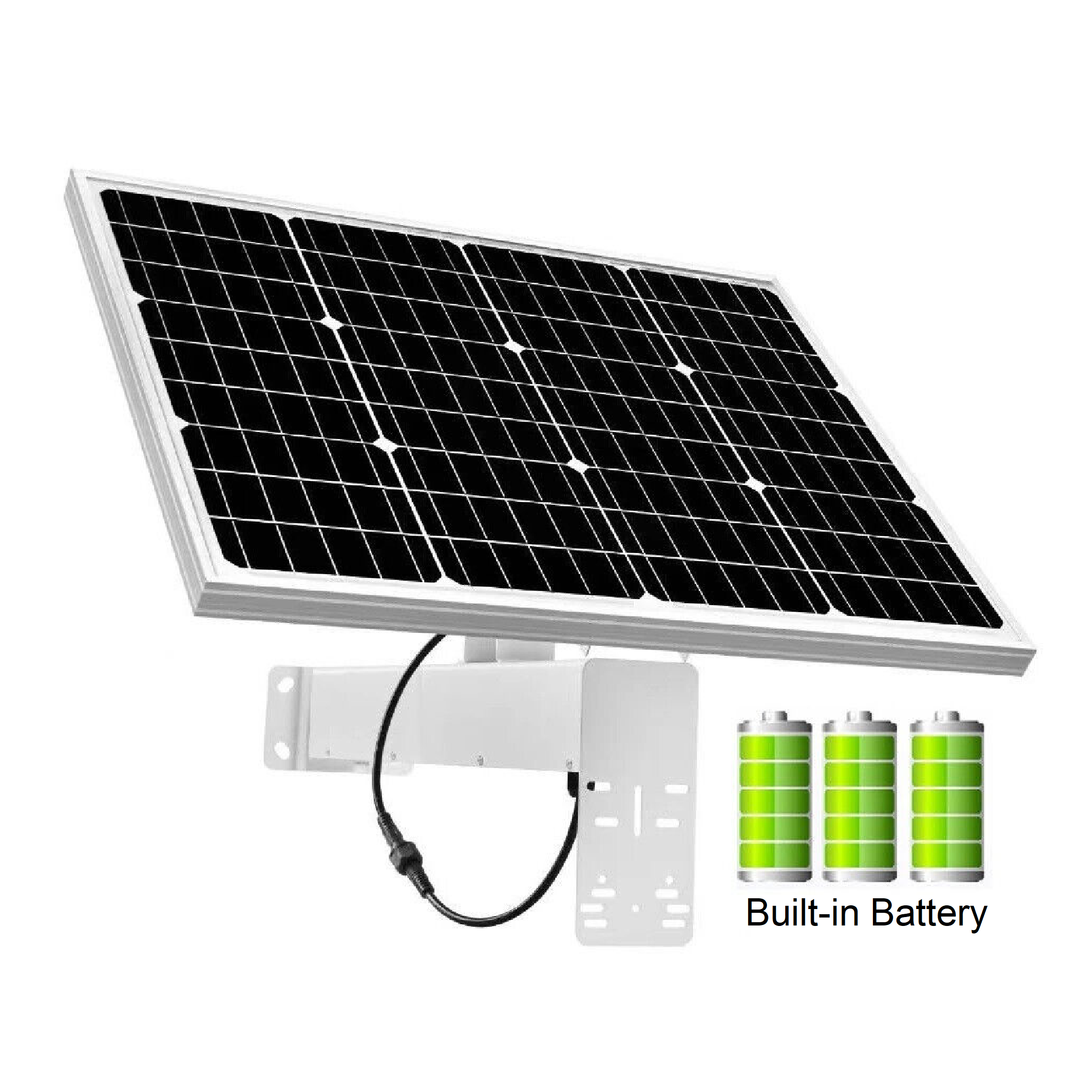

MiGi Premium – Solar Panel Power 50 / 70 / 100watt

MiGi Premium Solar panels are those devices which are used to absorb the sun’s rays and convert them into electricity or heat. Description: A solar panel is actually a collection of solar (or photovoltaic) cells, which can be used to generate electricity through photovoltaic effect.

The MPPT controller with bluetooth connection setting which for the app can connect with phone for the remote control setup all features and monitoring the charging status and etc.

Grade A 50watt, 70watt and 100watt Mono Crystalline Cell Monicrystalline solar panel 18Vmp18V system charger. It will take a 40 watt solar panel 7 days to charge a 100ah 12V battery. This is assuming the solar panel produces 200 watts a day. If the battery is discharged at 50%, it will take 3 to 4 days to charge.

50W solar panel with 18 open circuit voltage may produce 2.78A

70W solar panel with 18 open circuit voltage may produce 4.1A

100W solar panel with 18 open circuit voltage may produce 5.5A

Product Details

Modular Design
– 5°/15°/25°/35°/45°/55° Adjustable Angles
– Intelligent Auxiliary Heating Technology
– Maximum Power Point Tracking (MPPT) Charging Controller
– Bluetooth App Remote Management
– Plug and Play Installation

Crystal Solar Panel
– Power 50W / 70W / 100W
– Voltage 18 V

Dimensions (L x W x H)
– 50W :540 x 510 x 25mm
– 70W : 671 x 540 x 25mm
– 100W :770 x 671 x 25mm

Angle adjustment (manually)
– Range 5°/15°/25°/35°/45°/55°

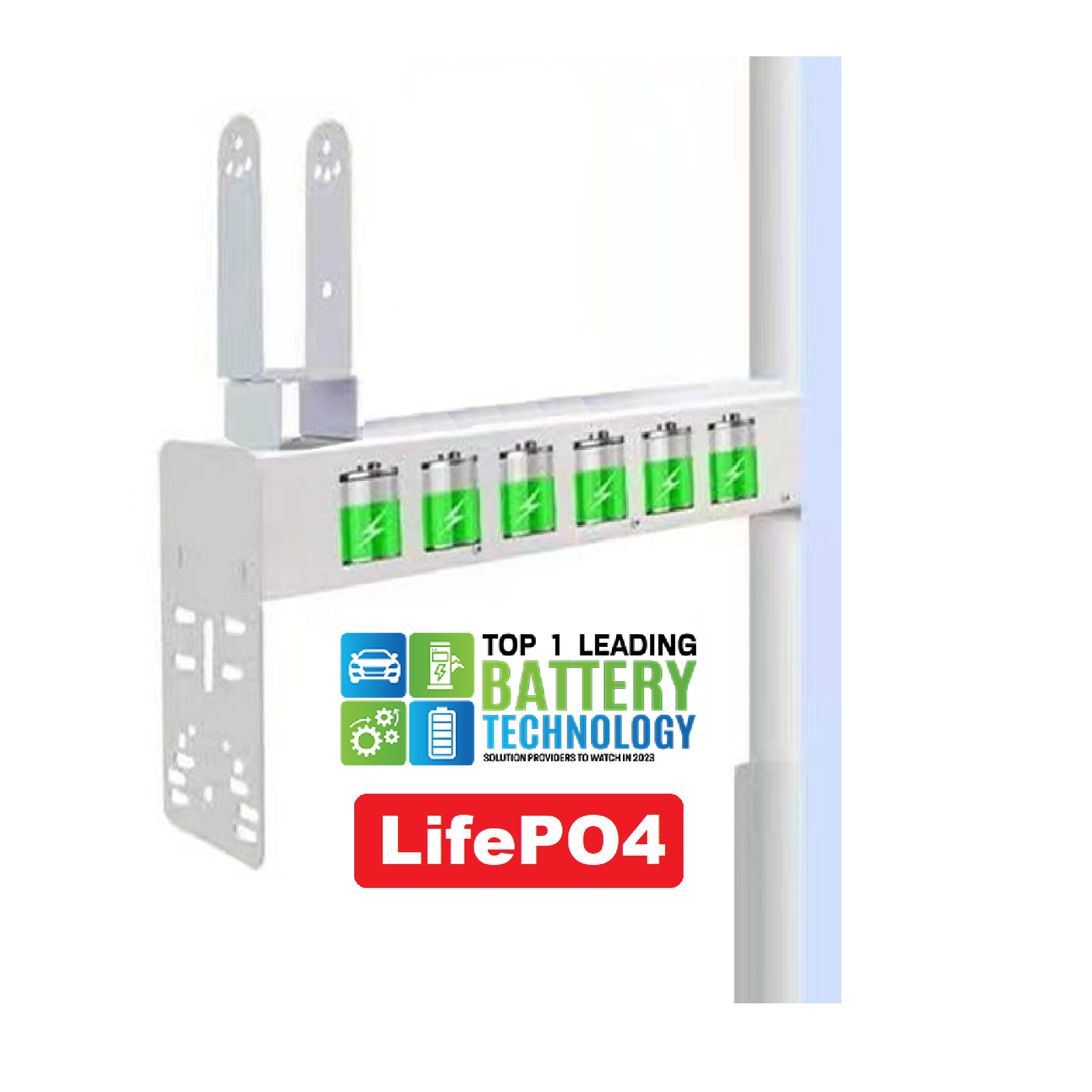

Battery Type LifePO4
Intelligent Auxiliary Heat Yes
Battery Capacity upto 60,000mAh
Voltage 18 V
Output Voltage Jack 12.6 V / 23.8 V or PoE 23.8V
Battery Life More than max. up to 2,000 to 10,000 cycles
Charging Condition
-30°C ~ 65°C
-30°C~65°C (With intelligent auxiliary heating)

Discharging Condition
-20°C~60°C
-30°C~60°C (With intelligent auxiliary heating)
Hardware Interface – 2 × USB Power 5V
Optional Selection
– 1 × 10/100/1000 Mbps RJ45 POE Power/
– 23.8V CAT6 (IP66)
– 1 × Photovoltaic Panel Connector
– 1 × 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A,
– #3: 12 VDC/2A)
Software Features Yes

Load Control Yes
High&Low Temperature Protection Yes
Overdischarge Protection Yes
Power Consumption Statistics Yes
Displays Real-time Load Status Yes
Battery Level Display Yes
Time Zone Selection Yes
Region Selection No
Schedule Saving Yes
Firmware Remote Update Yes
Remote Reboot Yes
Local LAN Management No
Smart Charging Control -30°C~5°C
Account Management No
Web Management No
Remote Reset Yes
Remote Message Push No
Certification
– CB, PSE (Battery)
– CE, FCC, VCCI, IC, IP65
Package Contents
– MIGI Premium Series C50WP / C70WP / C100WP
– Quick Start Guide
– Waterproof Cable Attachments
– Mounting Accessories

Weight
– Product weight: 17 kg
– Package weight: 16kg

Environment
– Operating Temperature: -30°C-65°C (With intelligent auxiliary heating)
– Operating Humidity: 10%~90%RH, Non-condensing

Product Details

Supported All type of CCTV Camera ( HikVision / Dahua / Tp-link VIGI or Tapo / D-Link / Tenda / SmartHome / SriHome )
Solar Panel : 18V with 50W / 70W / 100W (Charging speed)
Battery capacity : 10,000mAh / 20,000mAh / 30,000mAh / 40,000mAh / 50,000mAh / 60,000mAh
The Best LifePO4 battery and long lifespan and heat up to 65 C industrial standard
IP65 Waterproof

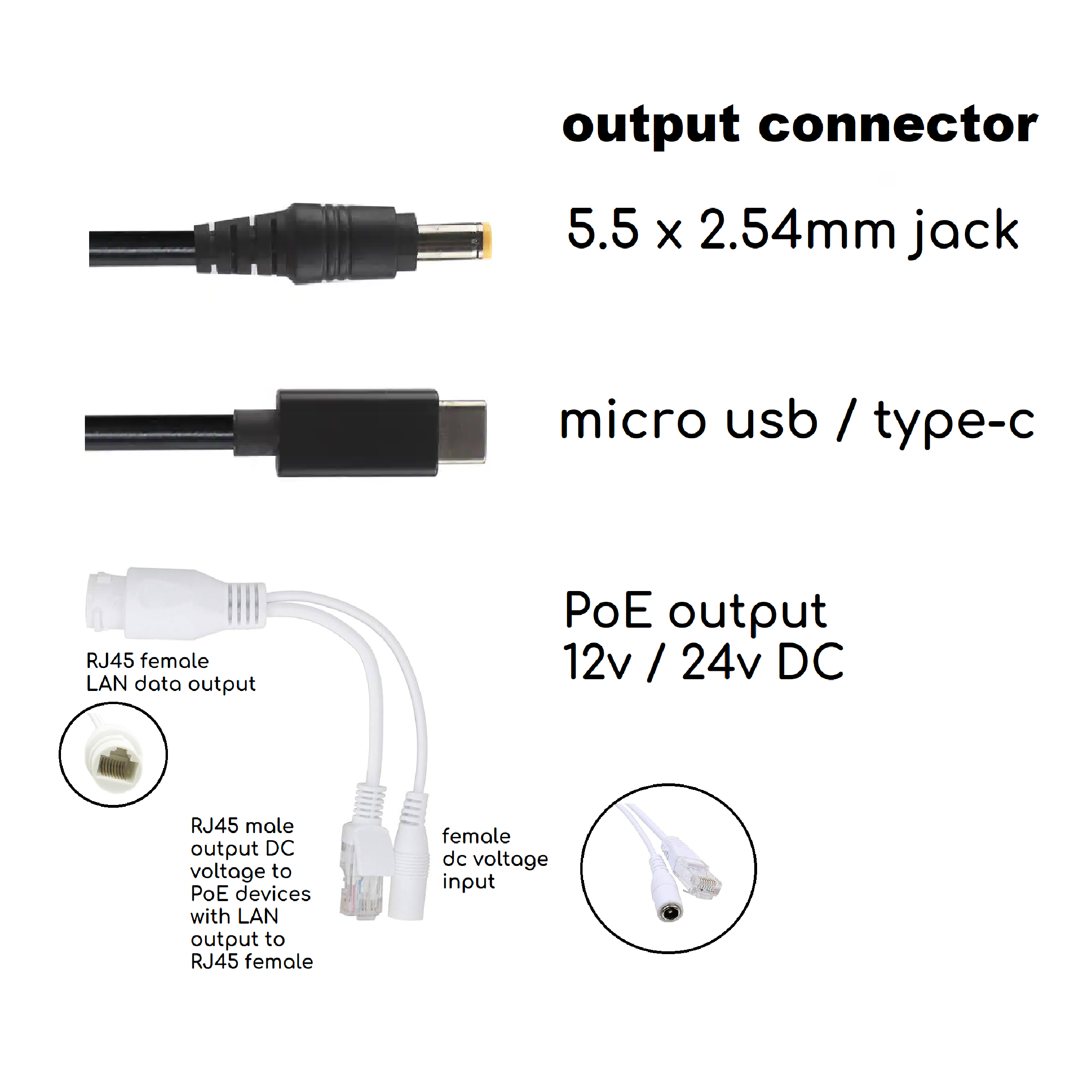

Power Connector : 5.5mm Jack for 12V/24V or PoE 12V/24V with 2 x USB Port Power

WiFi

Wireless RF: #1: 574Mbps @ 2.4GHz; #2: 1201Mbps @ 5.0-5.8GHz
Coding and modulation technology: 1024-QAM / OFDMA
Peak connection performance: no less than 64 terminals
Wi-Fi standard: WiFi6 is backward compatible with WiFi5
Antenna type: 6 high-performance Wi-Fi antennas, equipped with 12 signal amplifiers

Product name: MIGI Standard Solar Solution Series
Product model: MIGI Standard
Product description: Solar Power for CCTV camera, AP, Modem
Lightning protection level: Level 3 lightning protection
Battery : LifePo4 10Ah, 20Ah, 30Ah, 50Ah, 60Ah
MPPT : Standard Solar controller
Port : 2 x USB and 5.5 x 2.5mm Jack / RJ45 PoE connector
Supported protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Working environment: Temperature: -30℃~75℃, Humidity: 0~95% (no condensation)
Power supply: built-in power adapter
DC Power output : 12V / 24V
Weight: 16KG/set
Origin: Shenzhen, China

Model Series

50watt Solar Panel + Pro MPPT + 10AH LifePo4 battery + IP67 Chasis + App Controller MIGI C50WP-10A
50watt Solar Panel + Pro MPPT + 20AH LifePo4 battery + IP67 Chasis + App Controller MIGI C50WP-20A
50watt Solar Panel + Pro MPPT + 30AH LifePo4 battery + IP67 Chasis + App Controller MIGI C50WP-30A
50watt Solar Panel + Pro MPPT + 40AH LifePo4 battery + IP67 Chasis + App Controller MIGI C50WP-40A
70watt Solar Panel + Pro MPPT + 30AH LifePo4 battery + IP67 Chasis + App Controller MIGI C70WP-30A
70watt Solar Panel + Pro MPPT + 40AH LifePo4 battery + IP67 Chasis + App Controller MIGI C70WP-40A
70watt Solar Panel + Pro MPPT + 50AH LifePo4 battery + IP67 Chasis + App Controller MIGI C70WP-50A
70watt Solar Panel + Pro MPPT + 60AH LifePo4 battery + IP67 Chasis + App Controller MIGI C70WP-60A
100watt Solar Panel + Pro MPPT + 30AH LifePo4 battery + IP67 Chasis + App Controller MIGI C100WP-30A
100watt Solar Panel + Pro MPPT + 40AH LifePo4 battery + IP67 Chasis + App Controller MIGI C100WP-40A
100watt Solar Panel + Pro MPPT + 50AH LifePo4 battery + IP67 Chasis + App Controller MIGI C100WP-50A
100watt Solar Panel + Pro MPPT + 60AH LifePo4 battery + IP67 Chasis + App Controller MIGI C100WP-60A
