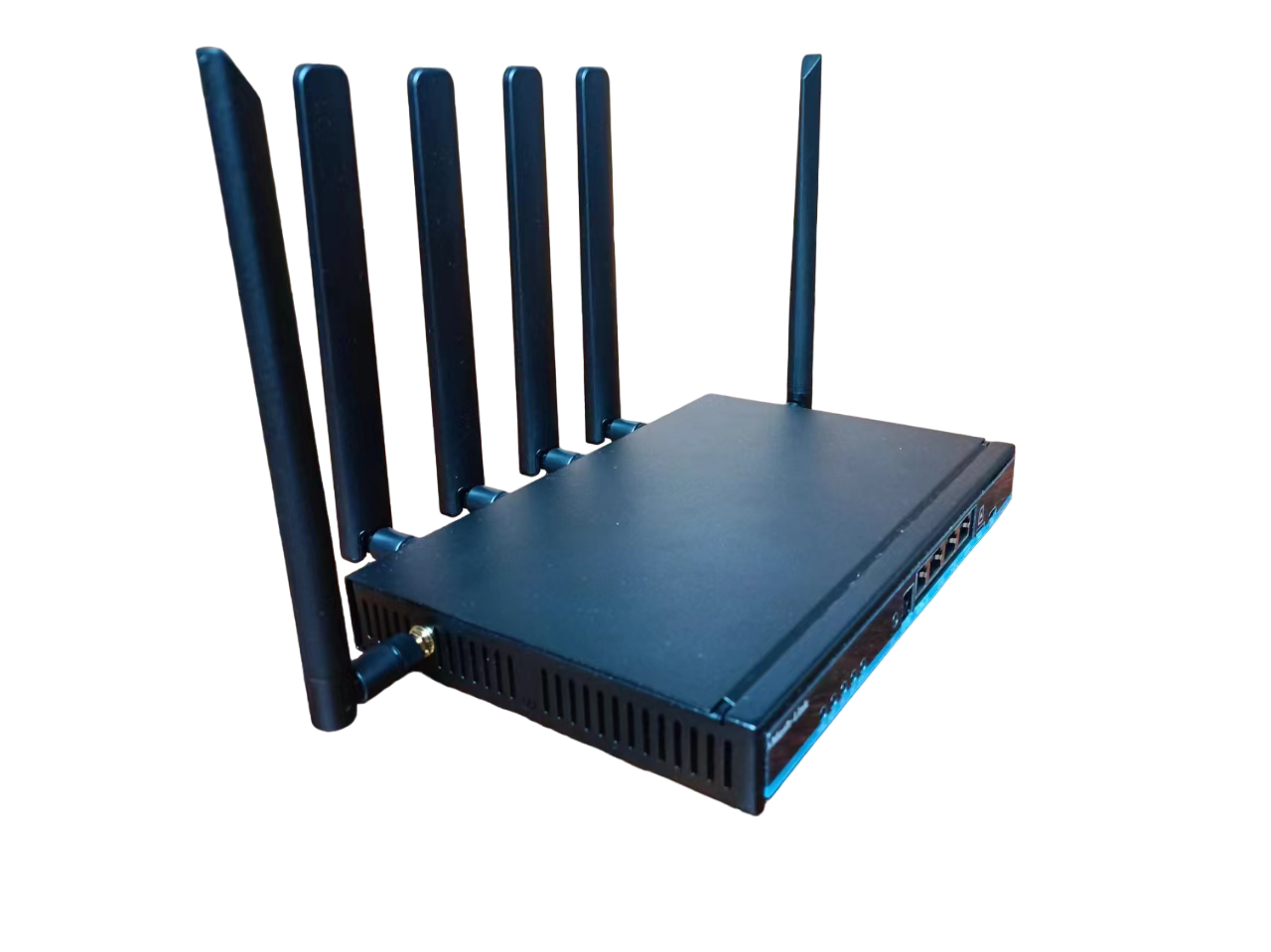

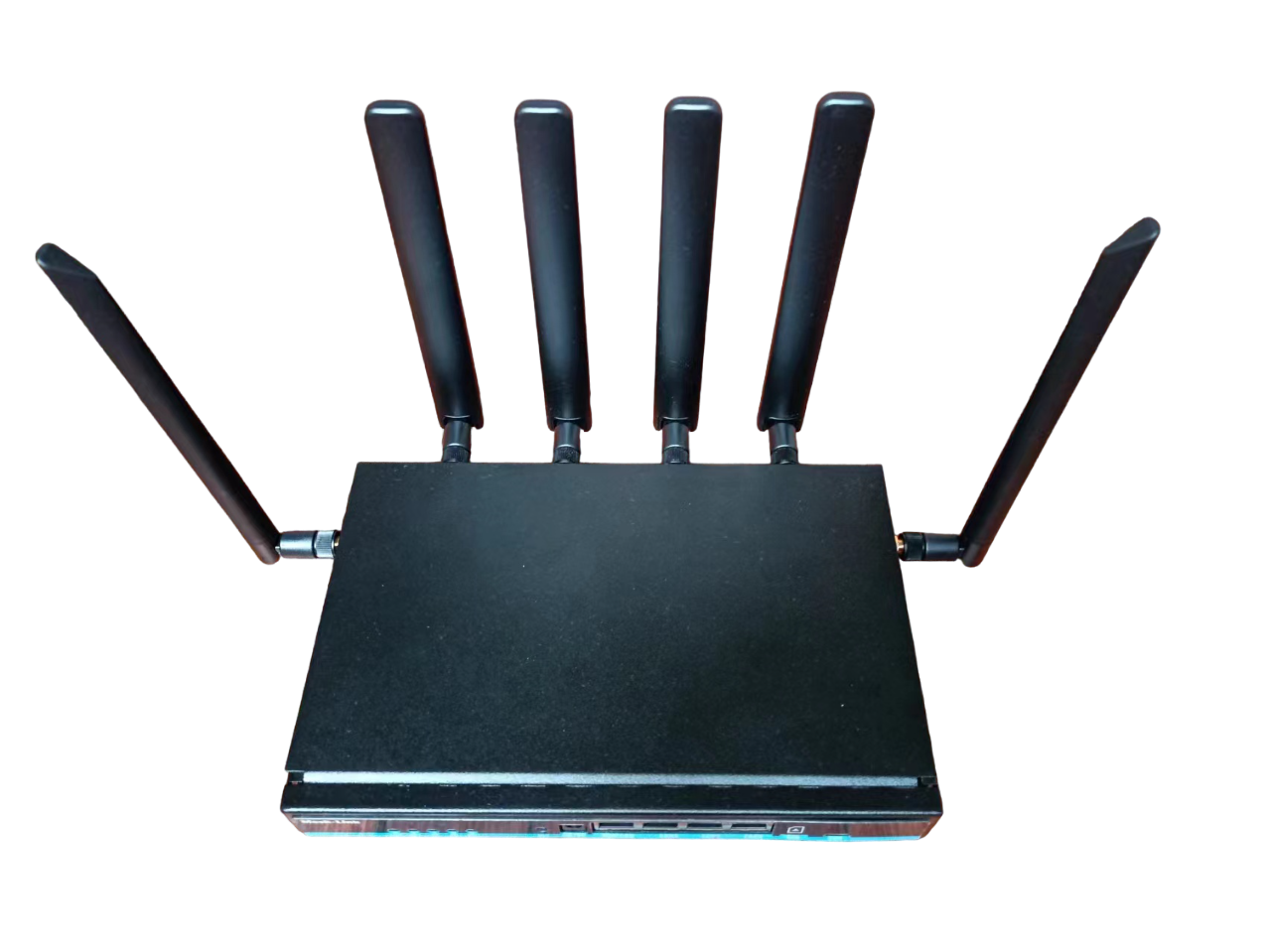

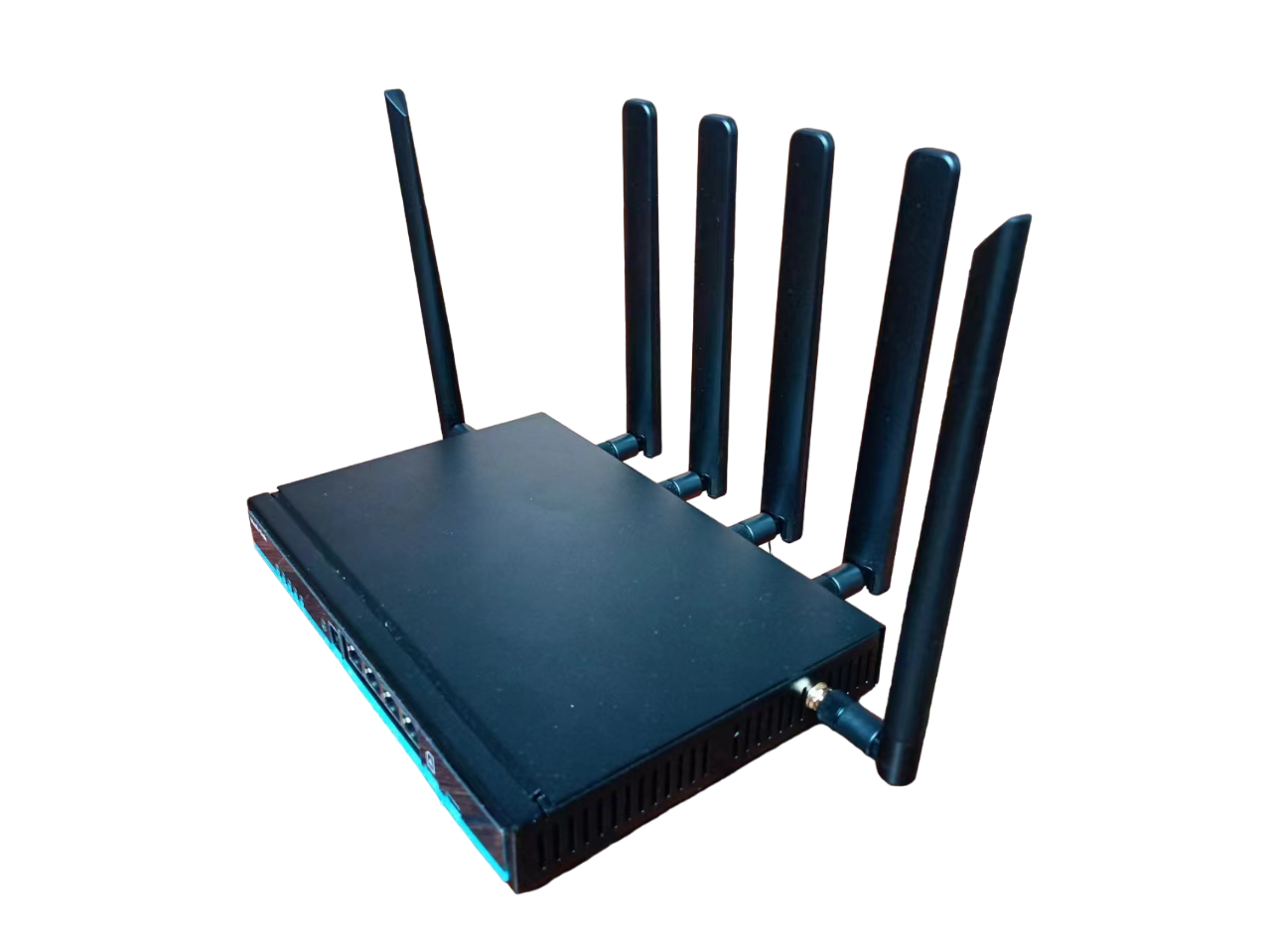

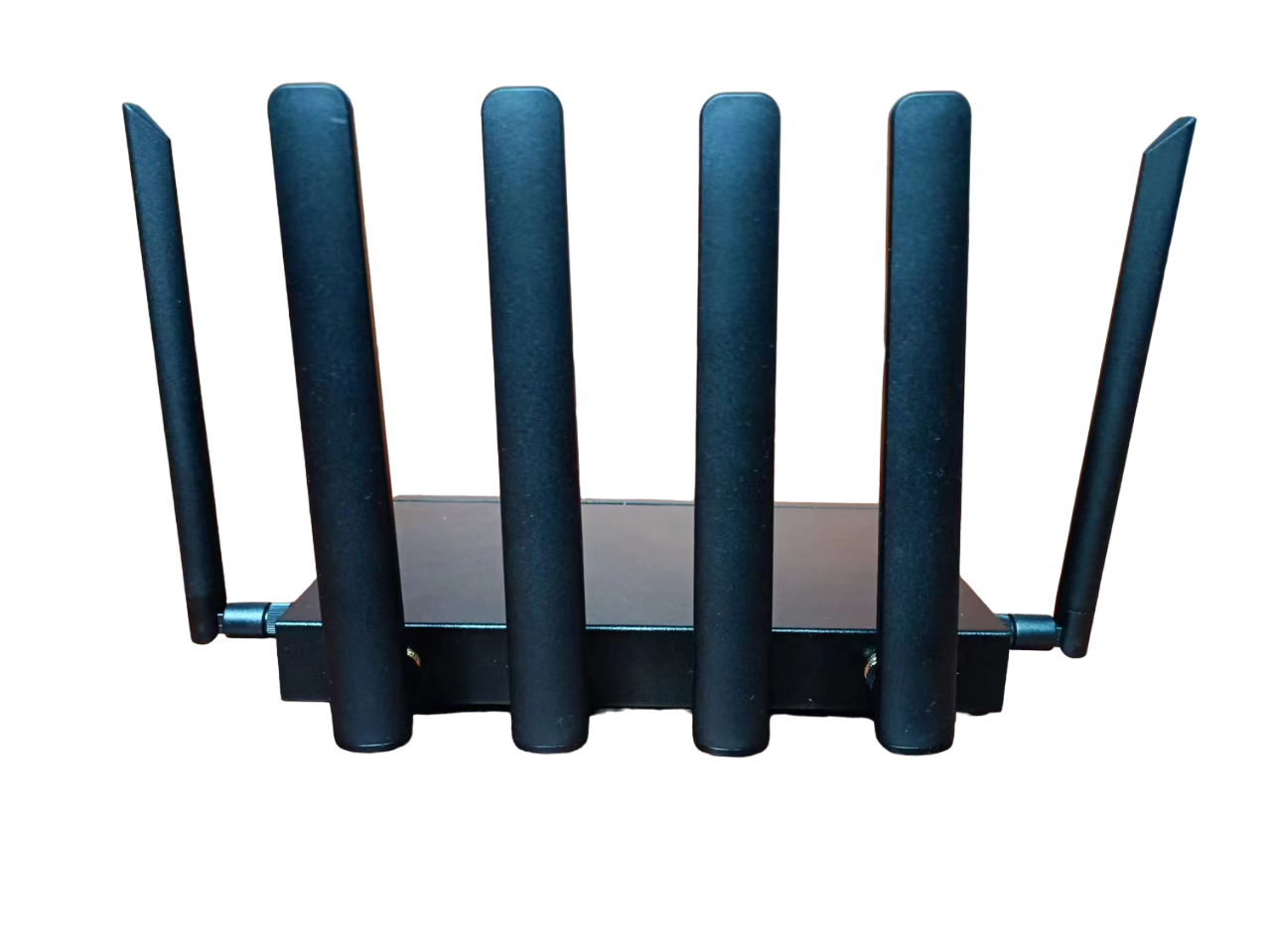

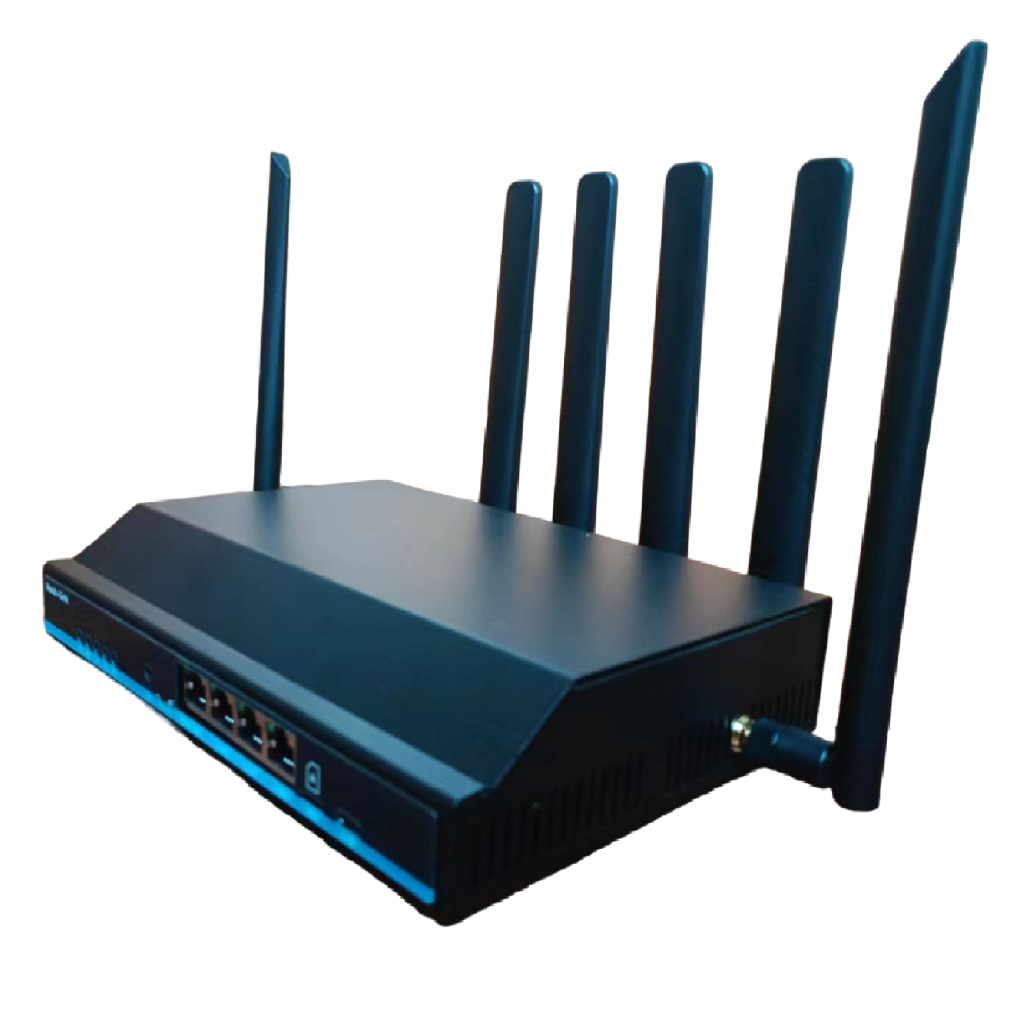

5G & WiFi-6 AX1800 MODEM（CPE)

CP502-V2 8AH Battery

5G & WiFi-6 Wireless Modem（CPE），is developed based on a new hardware platform to meet the urgently growing access needs of mobile terminals and IoT nodes, and can greatly improve users’ wireless Internet experience.

CPE is fully compatible with NSA/SA dual mode and complies with the Ministry of Industry and Information Technology’s telecommunications product network access standards.

Provides up to gigabit-level aerial optical fiber access capabilities to meet the transmission bandwidth requirements of VR/AR/4K/8K online video streaming.

Thanks to the latest 802.1ax WiFi 6 technology platform, a single CPE can cover 200 square meters of space and provide better wireless signals and network bandwidth. Provides future security technology, higher network speed, faster Wi-Fi, larger coverage and longer power consumption to provide users with a better network experience

Product Details

5G module: Qualcomm® Snapdragon™ X55 Modem-RF System
Peak Download Speed: Up to 7.5 Gbps, Up to 2.5 Gbps
Peak Upload Speed: Up to 3 Gbps, Up to 0.316 Gbps
Supported bandwidth : 20Mhz / 40Mhz / 80Mhz
Cellular Modem-RF Specs: 7×20 MHz carrier aggregation (DL), 200 MHz bandwidth (sub-6 GHz), 8 carriers (mmWave), 3×20 MHz carrier aggregation (UL), 800 MHz bandwidth (mmWave)
Performance Enhancement Technologies: 100 MHz envelope tracking, Adaptive antenna tuning, Uplink Data Compression (UDC), 5G envelope tracking
Cellular Technology: LTE Broadcast, TD-SCDMA, GSM/EDGE, LAA, 5G NR, 5G/4G spectrum sharing, LTE FDD, SA (standalone), NSA (non-standalone), CDMA 1x, 5G NR TDD, NSA, WCDMA (DC-HSUPA), EV-DO, 5G NR FDD, sub-6 GHz, WCDMA (DB-DC-HSDPA), TDD, LTE TDD support for CBRS, FDD, mmWave, LTE TDD
5G NR NSA：n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/71/ 75/ 76/ 77/78/79
5G NR SA：n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/71/ 75/ 76/ 77/78/ 79
MIMO：Downlink：4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n795G
NSA speed: 2.5Gbps/650Mbps (up to ISPs)

4G Internet

LTE Category：Downlink Cat 19/ Uplink Cat 18
LTE-FDD：B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71
LTE-TDD：B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48
MIMO DL: 4 × 4 MIMO on B2/B4/B5/B12/B13/B14/B17/B25/B26/B29/B30/B66/B41/B42/B43/B48/B71
WCDMA：B1/ 2/ 4/ 5/ 8/ 19
LTE : Down 1.0 Gbps；UP 200 Mbps

Specifications

Routing and Switching

Mobile network (5G/4G) access (supports private network)
Gigabit Ethernet access
Cascading technology: MESH+ hybrid networking
2.4G/5Ghz WiFi adaptive
Advanced firewall
MAC address filtering
WiFi encryption authentication
VPN tunnel/VPN penetration
IPv4/ipv6
Web page/APP management
Firmware upgrade

Hardware

Main Processor and 5G chipset : Qualcomm X55
RAM : 4GB + Flash : 4GB
Port : 1 x WAN/LAN, 3 x LAN, 1 x USB, 1 x Nano-SIM slot
Button : Reset
LED light : Power ON, 4G, 5G and WiFi
Power consumption : <23W
Power input : 12VDC 2A
Operation temperature : 0℃～40℃
Storage temperature : -20℃～+70℃
Dimension : 230 x 150 x 25mm
Weight : 900g
Package item :
1 x CP502-V2
8AH LifePO4 Battery
2 x dual-band WiFi antenna
4 x 4G/5G antenna
Power adapter
