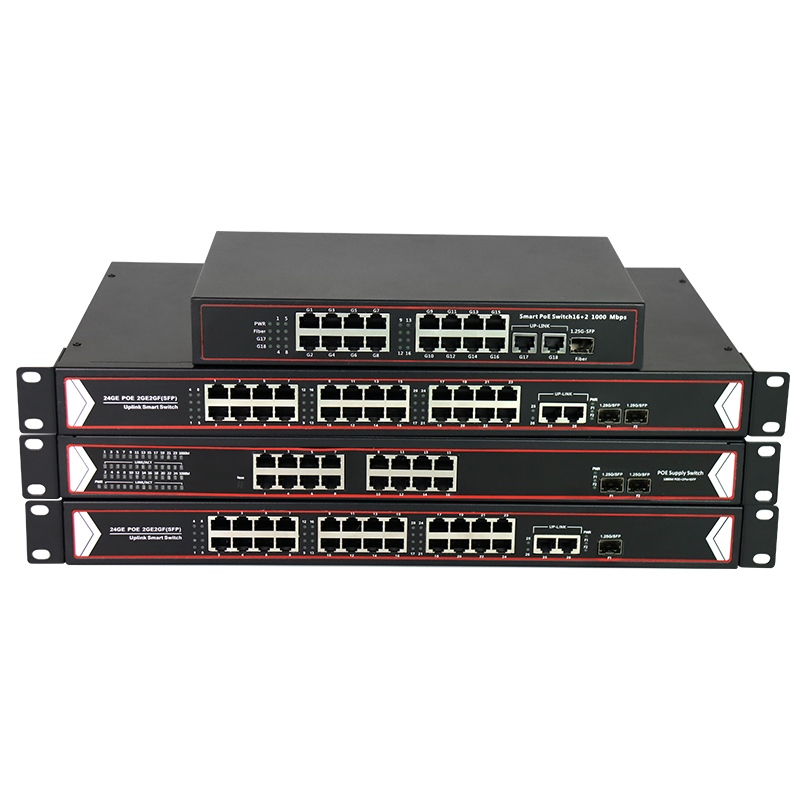

Gigabit 16-24 port POE powered fiber optic switch

Gigabit 16-24 port POE powered fiber optic switch

Gigabit 16-24 port POE powered fiber optic switch

Gigabit 1 optical 16 electrical/2 optical 24 electrical POE power supply switch provides 16-24 Gigabit POE electrical ports + 2 Gigabit SFP ports. The POE electrical ports support IEEE 802.3af/at power supply standards.

The maximum output POE power of a single port is 15.4W, and the maximum output POE power of the whole machine is 370W. The POE series switches are in a leading position among similar products, can meet the networking needs of large networks, and have rich intelligent and security features.

They are widely used in campus access (such as office and monitoring, wireless AP and other POE scenarios), Gigabit to desktop and other scenarios.

Product Details

  • Ethernet UTP interface

       Speed: 100M or 1000M, full duplex, half duplex fully adaptive

       Protocol: Support IEEE 802.3, IEEE 802.1Q (VLAN)

       MAC address table: can learn 4096 MAC addresses

       Physical interface: RJ45 socket supports AUTO-MDIX (cross line and straight line adaptive)

  • Optical Ethernet interface

       Fiber port: 1.25Gbps/SFP

       Speed: 1000M, full-duplex or half-duplex mode

       Protocol: Support IEEE 802.3, IEEE 802.1Q (VLAN)

       MAC address table: can learn 4096 MAC addresses

       Physical interface: SFP

       The distance of fiber optic transmission is limited by the loss of the optical path and the additional

       loss caused by the connecting terminals, connectors, and patch panels. The transmission distance

       may also be limited by the bandwidth of the fiber optic cable.

  • Ethernet POE features

       PoE standard: IEEE 802.3af (port output power 15.4W)

       PoE Type: End Spanning

       PoE port characteristics: port output power 15.4W (IEEE802.3af)

       PoE transmission core: 1/2+, 3/6-wire pairs

  • Electrical and mechanical characteristics

       Power supply: built-in power adapter (input AC220V, output 48V 3A)

       Appearance structure: Rack type (can be mounted on a cabinet)

  • Working environment

       Working temperature: -10℃ ~50℃

       Working humidity: 5% ~ 95% (non-condensing)

       Storage temperature: -40℃~80℃

       Storage humidity: 5%~95% (no condensation)

Product Features
  • Automatically adapt to 100Mbps and 1000Mbps environments to facilitate network upgrades;
  • The device provides 24 Ethernet electrical ports and 2 Ethernet optical ports;
  • Ethernet port supports standard IEEE802.3af power supply;
  • The maximum power of the Ethernet power supply port is 15.4W;
  • Support full-duplex and half-duplex network communications, with automatic negotiation capability
Application Environments
  • Million high-definition monitoring transmission and power supply
  • Wireless AP layout transmission and power supply
  • Internet phone transmission, smart home system
  • Urban intelligent traffic monitoring system (ITS), safe city, wireless city
  • Highway monitoring system, electronic road monitoring, snapshot system
  • Large-scale factory and mine enterprise security monitoring system, network multi-functional system
  • Remote multimedia teaching/campus monitoring, video conferencing system
  • Building intercom, wireless communication, video monitoring

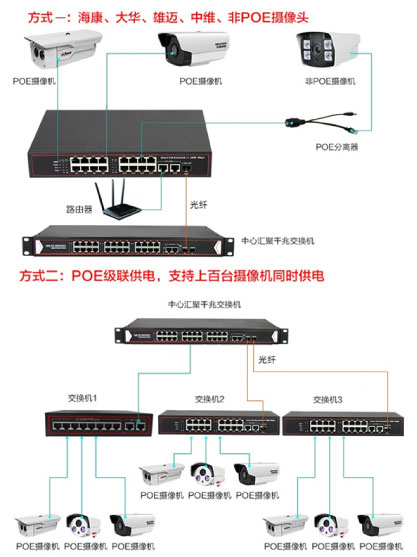

Connection Diagram

POE switches are widely used in education, medical, government, finance, electricity, operators and the Internet for wireless AP access, surveillance camera access or other equipment that requires POE power supply. They provide remote power supply in POE and POE+ mode, solving the problem of power cables being unable to be laid or being inaccessible to the greatest extent.

Specifications
  • Product name: Full Gigabit 16-port POE + 2 Gigabit SFP port power supply network switch
  • Product model: TX-POE-16GE2GF-U
  • Product description: 10/100/1000M adaptive fast Ethernet fiber optic transceiver
  • Lightning protection level: Level 3 lightning protection
  • Fiber optic interface: SFP socket
  • Transmission distance: 20 kilometers for single-mode transmission, 500 meters for multi-mode transmission
  • Transmission wavelength: 1310nm/1550nm
  • Duplex mode: Full duplex/half duplex
  • Backplane bandwidth: 52G
  • Port description: 16 10M/100M copper cable RJ45 ports + 2 1000M copper cable RJ45 ports
  • Network medium: Category 5 and above unshielded twisted pair (≦100 meters)
  • Forwarding method: store and forward
  • Network interface: RJ45 (automatically adapts to 10M/100Mbps/1000Mbps environment)
  • Supported protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Network bandwidth: 1000Mbps (actual operation can reach 700-800Mbps)
  • Working environment: Temperature: -30℃~75℃, Humidity: 0~95% (no condensation)
  • Power supply: built-in power adapter (input AC220V, output 48V 3A)
  • Power consumption of the whole machine: 120W (Input: DC48V 3000mA)
  • Weight: 1.5KG/set
  • Origin: Shenzhen, China
Model Series

Product Name

Product Code

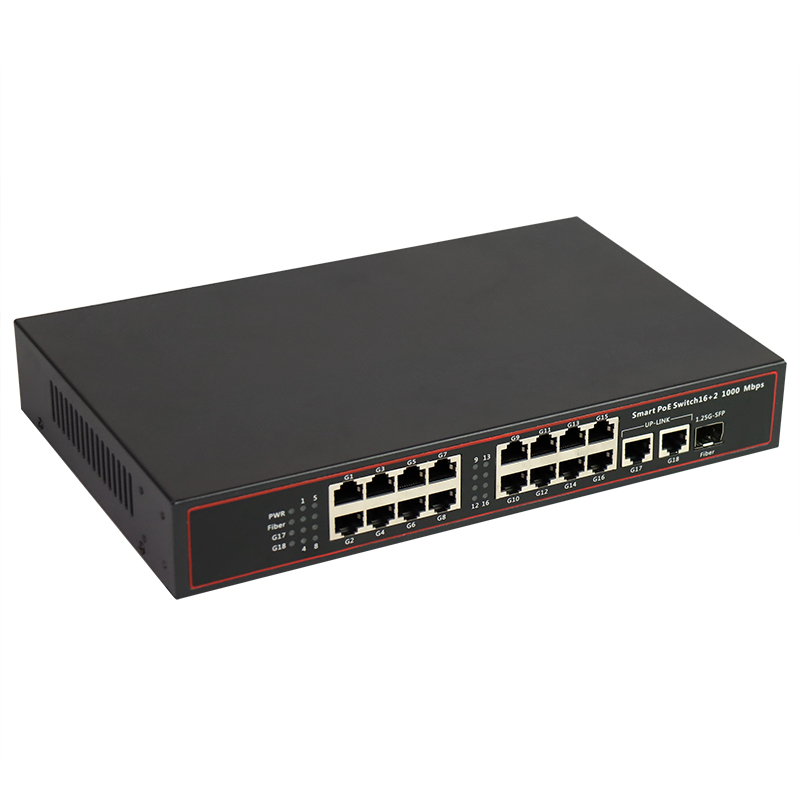

Full Gigabit 16-port POE + 2 Gigabit Ethernet ports + 1 Gigabit SFP optical port (150W power supply – desktop)

TX-POE-162GE2GF

Full Gigabit 16-port POE + 2 Gigabit Ethernet ports + 1 Gigabit SFP optical port (260W power supply – desktop)

TX-POE-162GE2GF

Full Gigabit 16-port POE + 2 Gigabit SFP optical ports

(260W Power Supply – Rack Mount)

TX-POE-16GE2GF-U

Full Gigabit 16-port POE + 2 Gigabit Ethernet ports + 1 Gigabit SFP optical port (380W power supply – rack-mounted)

TX-POE-16GE2GF-U

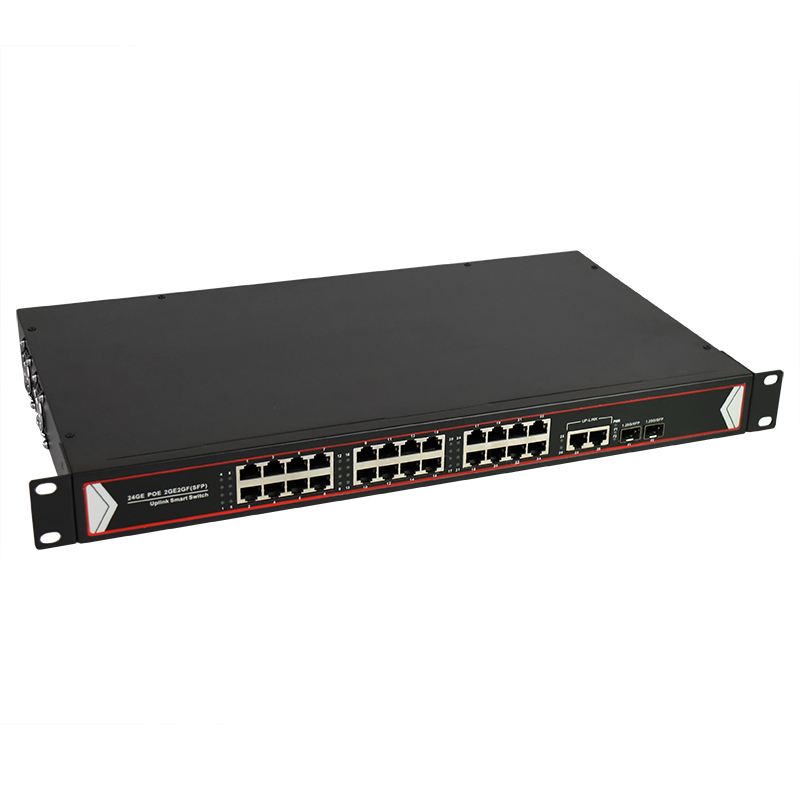

Full Gigabit 24-port POE + 2 Gigabit SFP optical ports

(260W Power Supply – Rack Mount)

TX-POE-24GE2GF-U

Full Gigabit 24-port POE + 2 Gigabit Ethernet ports + 2 SFP Gigabit optical ports (260W power supply – rack-mounted)

TX-POE-242GE2GF-U

Full Gigabit 24-port POE + 2 Gigabit SFP optical ports

(380W Power Supply – Rack Mount)

TX-POE-24GE2GF-U

Full Gigabit 24-port POE+2 Gigabit Ethernet+2 SFP Gigabit optical ports

(380W Power Supply – Rack Mount)

TX-POE-242GE2GF-U
