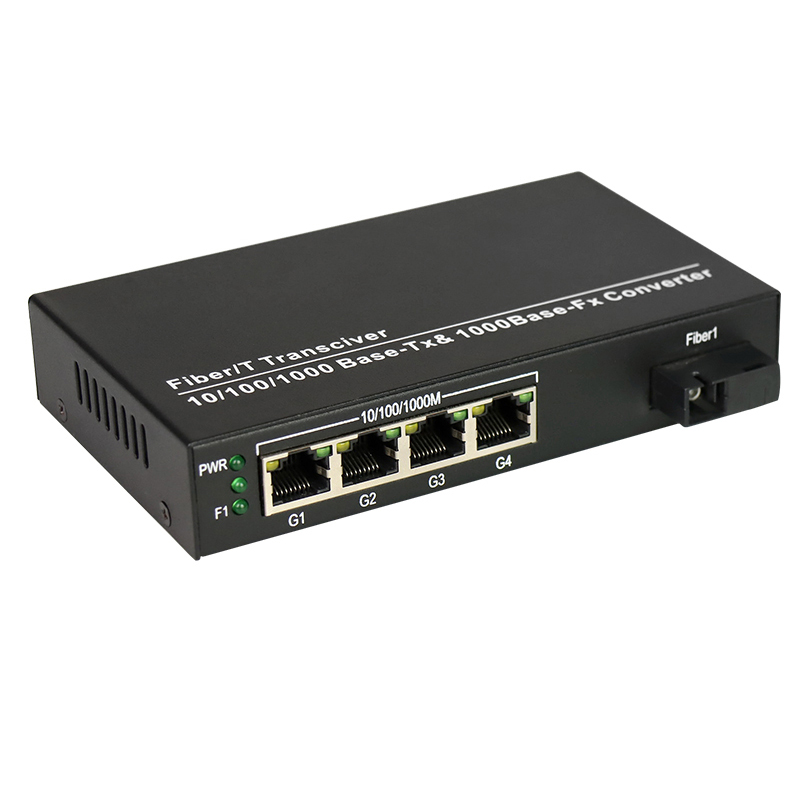

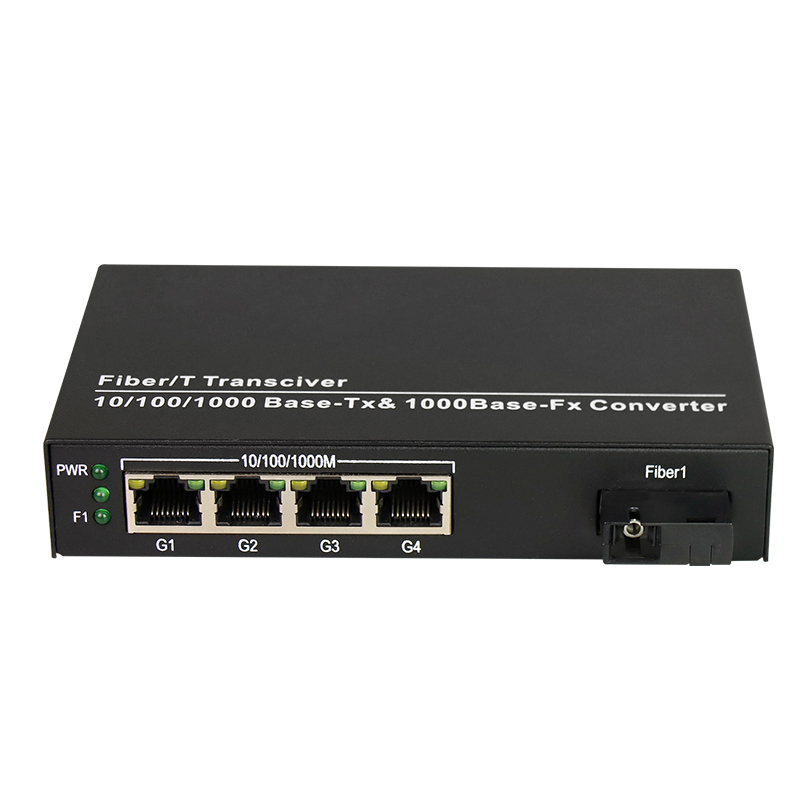

Gigabit 1-Port Fiber and 4-Ports POE switch

Gigabit 1 fiber optical 4 POE power supply switch provides 4 Gigabit POE ports + 1 Gigabit fiber optical port. The POE port supports IEEE 802.3af/at power supply standards.

The maximum output POE power of a single port is 15.4W, and the total power of the whole machine is 120W.

TX6-4GE1GF-POE series switches are in a leading position among similar products, can meet the networking needs of large networks, and have rich intelligent and security features.

They are widely used in campus access (such as office and monitoring, wireless AP and other POE scenarios), Gigabit to desktop and other scenarios.

Product Details

Product Name: Full Gigabit 4-port PoE powered single-fiber optical transceiver (single-mode and multi-mode compatible)
Product model: TX6-4GE1GF-POE
Product Description: 8+1 port Ethernet fiber switch with 4-port PoE feature
Product size: 142mm*97mm*26mm (length*width*height)
Lightning protection level: Level 3 lightning protection
Fiber optic interface: SC interface (square card-type)
Transmission distance: 20 km for single-mode transmission, 500 meters for multi-mode transmission
Port Description: 4 10M/100M/1000M copper cable RJ45 ports
Network medium: Category 5 and above unshielded twisted pair (≦100 meters)
Forwarding method: Store and forward
Supported protocols: IEEE 802.3, IEEE802.3u, IEEE802.3x
PoE port: 1-4 ports support IEEE 802.3af (15.4W) network power supply
PoE standard: IEEE 802.3af (port output power 15.4W)
PoE transmission core: 1/2+, 3/6-pair
PoE total power: 120W
Working environment: Temperature: -30℃~75℃, Humidity: 0~95% (no condensation)

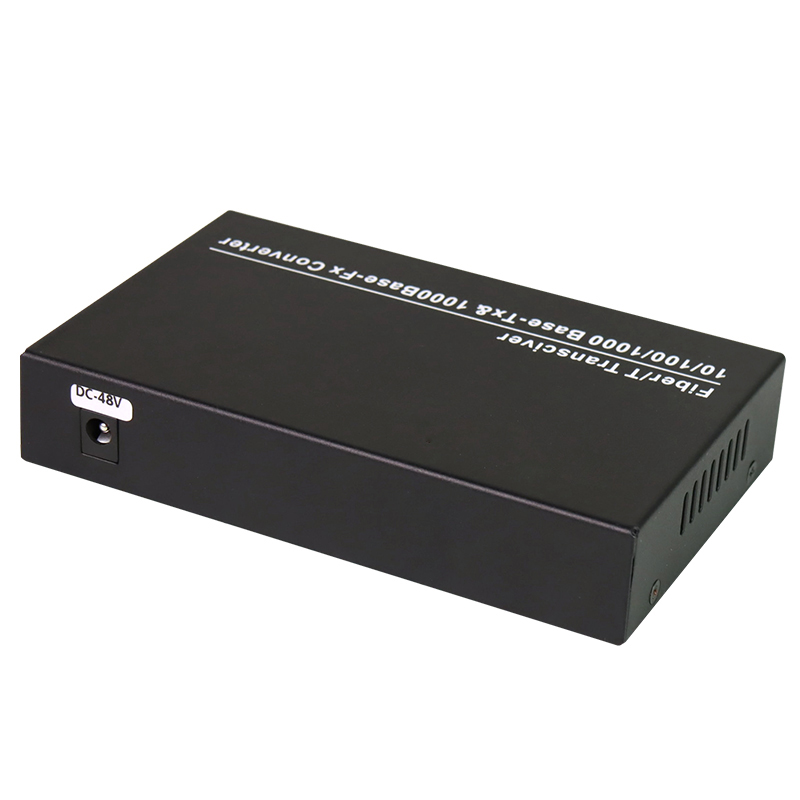

Power supply: External power adapter (input AC220V, output 48V 3A)
Power consumption: 120W (Input: DC48V 3000mA)
Product packaging: Equipment/ Power supply/ Manual/ Certificate/ Warranty card
Weight: 1KG/unit
Origin: Shenzhen, China

Product Features

Automatically adapt to 100Mbps and 1000Mbps environments to facilitate network upgrades;
The device provides 4 Ethernet electrical ports and 1 Ethernet optical port;
Ethernet port supports standard IEEE802.3af power supply;
The maximum power of the Ethernet power supply port is 15.4W;
Support full-duplex and half-duplex network communications, with automatic negotiation capability;

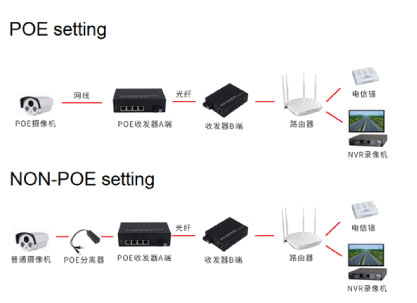

Connection Diagram

Specifications

Product Name: Full Gigabit 4-port PoE powered single-fiber optical transceiver (single-mode and multi-mode compatible)
Product model: TX6-4GE1GF-POE
Product Description: 8+1 port Ethernet fiber switch with 4-port PoE feature
Product size: 142mm*97mm*26mm (length*width*height)
Lightning protection level: Level 3 lightning protection
Fiber optic interface: SC interface (square card-type)
Transmission distance: 20 km for single-mode transmission, 500 meters for multi-mode transmission
Port Description: 4 10M/100M/1000M copper cable RJ45 ports
Network medium: Category 5 and above unshielded twisted pair (≦100 meters)
Forwarding method: Store and forward
Supported protocols: IEEE 802.3, IEEE802.3u, IEEE802.3x
PoE port: 1-4 ports support IEEE 802.3af (15.4W) network power supply
PoE standard: IEEE 802.3af (port output power 15.4W)
PoE transmission core: 1/2+, 3/6-pair
PoE total power: 120W
Working environment: Temperature: -30℃~75℃, Humidity: 0~95% (no condensation)
Power supply: External power adapter (input AC220V, output 48V 3A)
Power consumption: 120W (Input: DC48V 3000mA)
Product packaging: Equipment/ Power supply/ Manual/ Certificate/ Warranty card
Weight: 1KG/unit
Origin: Shenzhen, China
