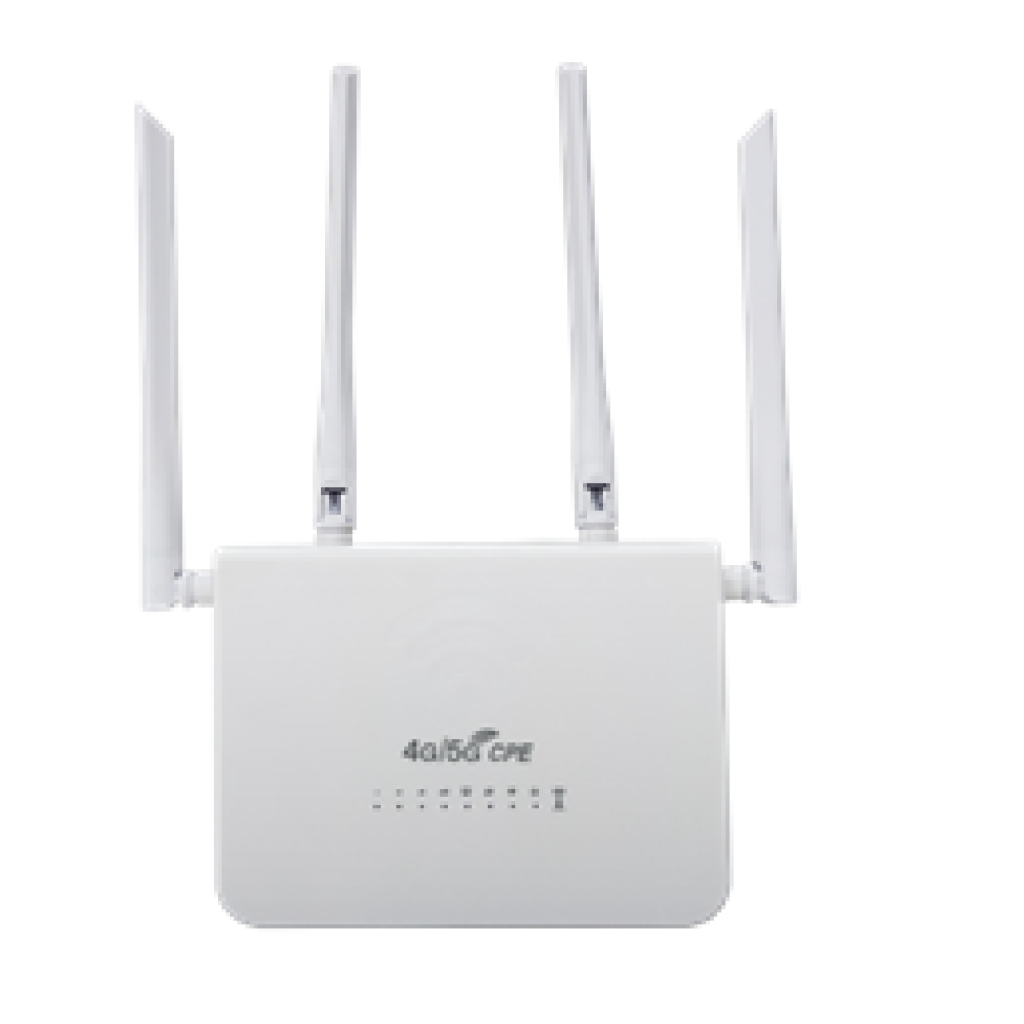

4G MODEM
| Model | CPF912 | ||||
| Item name | 4G LTE CPE | ||||
| Appearance | Dimension (L × W × H) | 150*100*30mm(Antennas not included) | |||
| Weight | 180g | ||||
| Hardware Platform | HW_VER | CPE912-V2.0 | |||
| MTK Chipset | MT6735WM | ||||
| RAM/ROM | 4GByte EMMC+512MByte DDR2 | ||||
| Band | FDD operating band B1,B3,B5/20,B7,B8 | TDD operating band B38,B39,B40,B41 | WCDMA:B1,B5 ,B8 | GSM:900/1800MhZ | B5,B20 Optional |
| Diversity Band | FDD operating band B1,B3,B5/20,B7,B8 | TDD operating band B38, B39, B40, B41 | WCDMA:B1, B5, B8 | GSM:900/1800MhZ | |
| 3GPP | 3GPP R9 Cat.4 | 3GPP R9 Cat.4 | 3GPP R7&R8 HSDPA Cat.24(64QAM) HSUPA Cat.7(16QAM) | 3GPP2 | NA |
| Transfer rate | up to 150Mbps DL up to 50Mbps UL | up to 150Mbps DL up to 50Mbps UL | HSDPA up to 42.2Mbps DL HSUPA up to 11.5Mbps UL | 3.1Mbps DL | NA |
| Wi-Fi Chipset | MT6625L | ||||
| Wi-Fi | IEEE 802.11b/g/n | ||||
| Wi-Fi Transfer rate | up to 150Mbps | ||||
| Encryption | Wi-Fi Protected Access™ (WPA/WPA2)2 | ||||
| External antenna | 2*2.4GWIFI 1* LTE Main 1* LTE DIV | ||||
| softSIM | esim or softsim | ||||
| Customization | Smart system, strong customization ability | ||||
| LED | LED ( LTE WIFI RJ45) | ||||
| Port | Power on/off | 1 power button | |||
| SIM | Micro SIM (3FF) | ||||
| USB | USB TYPE A (5V 1A IN) | ||||
| DC | 12V 1A IN | ||||
| RJ45 | 1* WAN/LAN | ||||
| RESET | 1*Reset | ||||
| Internet | Wi-Fi | Wi-Fi AP， Max 10 users | |||
| WIFI SSID | 4GCPE-XXXX（last 4 digits of the MAC address） | ||||
| WIF password by default | 1234567890 | ||||
| Operating Environment | Working temperature | -10° to 55°C | |||
| Working height | Current tested max height 3000m (10,000 inches) | ||||
| Operation system | PC Users: A PC with Windows XP (SP3), Windows Vista (SP1), Windows 7,or Windows 8 WIN10 | MAC Users: A Mac with OS X v10.5.7,OS X Lion v10.7.3 or later | IPAD Uers: An iPhone, iPad, or iPod touch with iOS 5 or later | Android Uers: An mobile Phone or Tablet PC with Android 2.3 or later | |
| Operation Browser | Internet Explorer 8.0 ,Mozilla Firefox 40.0 ,Google Chrome 40.0 ,Safari or above | ||||
| Software Platform | System | Android 6.0 | |||
| WEB | Gateway | http://192.168.199.1 | |||
| Log in | Password：admin ( passord modification reqested to done at first loging as default setting Language(Chinese/English) | ||||
| Status | Connection; APN;IP; Signal Strength; Battery Capacity; Conneting time; Users | ||||
| Networks | APN confirguration: International roaming switch, APN, User name, Password, Authorization type modification, New APN, Restore defaulf APN parameters. Traffic statistics: Traffic Limitation: Afering reaching the set value, limit the speed as set. | ||||
| Wifi | WLAN configuration: SSID modifiation, encryption methods, encryption password, Maximum user number setting, support PBC-WPS WiFi connection list: check the list that connect to this device, check MAC address, IP address, hostname, forbid and recover access to internet. | ||||
| System Manage | Login password management: User name, password modification System operation: Restart, Shutdown, Restore factory setting System Information: Check software version, WLAN MAC address, IMEI NO. Phonebook setting: New, modify, look up, delete contact | ||||
| SMS Management | SMS create, delete, send | ||||
| OTHER | SIM lock | SIM card lock/unlock | |||
| SIM compatiblity | China Unicom, China telecom, China mobile，and 4G IoT network card | ||||
Technical parameter list | Detailed parameter description | |
Powered by | Power supply | Mains power supply |
Input voltage | AC100-240V 50-60Hz | |
Power consumption | The machine itself consumes less than 15W Total power consumption is less than 370W | |
Port parameters | network port | 1~24 Downlink network port: 10/100Mbps 2 uplink optical ports 1.25Gbps/SFP 2 Uplink network ports: 10/100/1000Mbps |
Transmission distance | 1~24 downstream POE network port: 100 meters Uplink network port: less than 100 meters | |
Transmission medium | 1~24 downstream network ports: Cat5e/6 standard UTP network cable, Uplink optical port: optical fiber/SFP Uplink electrical port: Cat5e/6 standard UTP network cable | |
POE Standards | Comply with IEEE 802.3af/at international standards, single-port maximum power supply 30W | |
PoE power supply mode | End-Spanning Method | |
PoE power supply | Single POE port ≤15.4W, whole device <370W | |
Exchange Parameters | Web Standards | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3az, IEEE802.1Q (VLAN), IEEE 802.1w (RSTP), IEEE 802.3af/at |
Backplane bandwidth | 8-52Gbps | |
Forwarding method | Store and Forward | |
Forwarding rate | 10Mbps:14880pps, 100Mbps:148800pps | |
Packet Data Cache | 6.5M | |
MAC address table | 4K | |
Status Indicator | Power Indicator | 1 power indicator (green) |
Fiber optic indicator light | GF port green light | |
Uplink port indicator light | 25,26 | |
Ultra long distance transmission indicator light | 1 indicates CCTV (green) | |
POE power supply port LED | PoE status indicator 24 yellow lights | |
Network data port LED | Data status indication 24 green lights | |
Protection level | Communication port lightning protection | 4KV Implementation standard: IEC61000-4-5 |
Environmental Specifications | Operating temperature | -20℃~60℃ |
Storage temperature | -40℃~70℃ | |
Humidity (non-condensing) | 5~95% | |
reliability | Mean Time Between Failures (MTBF) | ＞50000h |
Model | Descriptions |
TX 7 – POE-4E | 100M 4-port POE + 2 100M network ports, built-in power supply 60W, standard power supply, desktop, backplane bandwidth 1.2Gbps, whole machine power ≤ 60W, single port power 15.4W, power supply protocol IEEE802.3AF/AT |
TX7-POE-8E2GE | 100M 8-port POE + 2 Gigabit uplink ports, external power supply 48V3A, standard power supply, desktop backplane bandwidth 5.6Gbps, whole machine power ≤ 96W, single port power 15.4W, power supply protocol IEEE802.3AF/AT |
TX 7 – POE-8E2GE | 100M 8-port POE + 2 Gigabit uplink ports, built-in power supply 90W, standard power supply, desktop, backplane bandwidth 5.6Gbps, whole machine power ≤ 96W, single port power 15.4W, power supply protocol IEEE802.3AF/AT |
TX7-POE-4GE | Gigabit 4-port POE + 1 Gigabit network port, external power supply 60W, standard power supply, desktop , backplane bandwidth 12Gbps, whole machine power ≤ 60W, single port power 15.4W, power supply protocol IEEE802.3AF/AT |
TX7-POE-8GE | Gigabit 8-port POE + 2 Gigabit uplink ports, external power supply 48V3A, standard power supply, desktop backplane bandwidth 20Gbps, whole machine power ≤ 96W, single port power 15.4W, power supply protocol IEEE802.3AF/AT |
TX7-POE-8GE | Gigabit 8-port POE+ 8 Gigabit uplink ports, built-in power supply 90W, standard power supply, desktop , backplane bandwidth 20Gbps, whole machine power ≤ 96W, single port power 15.4W, power supply protocol IEEE802.3AF/AT |
TX7-POE-12E | 100M 12-port POE + 2 100M network ports, external power supply 48V3A, standard power supply, desktop , backplane bandwidth 2.8Gbps, whole machine power ≤ 120W, single port power 15.4W, power supply protocol IEEE802.3AF/AT |
TX7-POE-12GE | Gigabit 12-port POE + 2 Gigabit uplink ports, external power supply 120W, standard power supply, desktop , backplane bandwidth 16Gbps, whole machine power ≤ 120W, single port power 15.4W, power supply protocol IEEE802.3AF/AT |
TX7-POE-16E2GE | 100M 16-port POE + 2 Gigabit Ethernet ports, built-in power supply 150W, standard power supply, independent , backplane bandwidth 7.2Gbps, whole machine power ≤ 150W, single port power 15.4W, power supply protocol IEEE802.3AF/AT |
TX7-POE-16E2GE | 100M 16-port POE + 2 Gigabit Ethernet ports, built-in power supply 260W, standard power supply, rack-mounted, backplane bandwidth 7.2Gbps, total power ≤ 260W, single-port power 15.4W, power supply protocol IEEE802.3AF/AT |
TX7-POE-16E2GE | 100M 16-port POE + 2 Gigabit Ethernet ports, built-in power supply 400W, standard power supply, rack-mounted, backplane bandwidth 7.2Gbps, total power ≤ 400W, single-port power 15.4W, power supply protocol IEEE802.3AF/AT |
TX7-POE-16GE | Gigabit 16-port POE + 2 Gigabit network ports, built-in power supply 260W, standard power supply, rack-mounted, backplane bandwidth 36Gbps, whole machine power ≤ 260W, single port power 15.4W, power supply protocol IEEE802.3AF/AT |
TX7-POE-16GE | Gigabit 16-port POE + 2 Gigabit network ports, built-in power supply 400W, standard power supply, rack-mounted, backplane bandwidth 36Gbps, whole machine power ≤ 400W, single port power 15.4W, power supply protocol IEEE802.3AF/AT |
TX7-POE-24E4GE | 100M 24-port POE + 4 Gigabit Ethernet ports, built-in power supply 400W, standard power supply, rack-mounted, backplane bandwidth 8.8Gbps, total power ≤ 400W, single-port power 15.4W, power supply protocol IEEE802.3AF/AT |
TX7-POE-24GE | Gigabit 24-port POE + 2 Gigabit uplink ports, built-in power supply 260W, standard power supply, rack-mounted, backplane bandwidth 52Gbps, total power ≤ 260W, single-port power 15.4W, power supply protocol IEEE802.3AF/AT |
TX7-POE-24GE | Gigabit 24-port POE + 2 Gigabit uplink ports, built-in power supply 400W, standard power supply, rack-mounted, backplane bandwidth 52Gbps, whole machine power ≤ 400W, single port power 15.4W, power supply protocol IEEE802.3AF/AT |
