Product model:

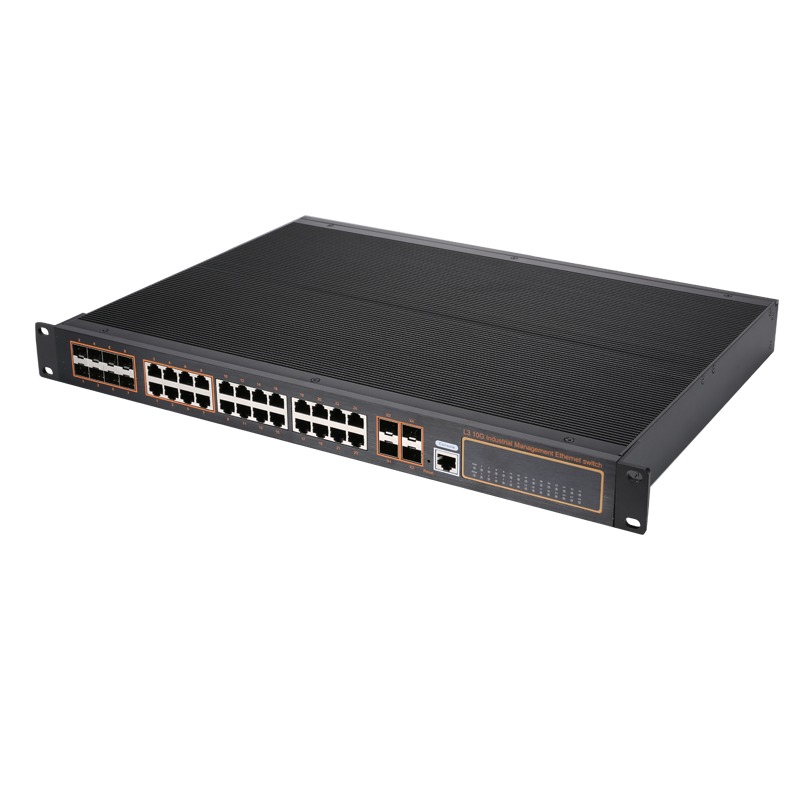

TX8-24GE8GFS4T-SFP-B

Product ports :
24 10/100/1000M electrical ports + 8 Gigabit SFP multiplexed optical ports + 4 10G optical ports

Management port:
1 console port

Reset button:
1 reset button

Switching capacity:
360Gbps

Packet forwarding rate:
131Mpps

Digital alarm tube:
support

MAC address:
support 32K MAC address table;
support automatic update, two-way learning;

DHCP:
Support DHCP Client; Support DHCP Server;
Support DHCP Snooping; Support DHCP Relay;

Operating temperature:
-40~85°C

Storage temperature:
-40~85°C

Working humidity:
10%~90% without condensation

Storage humidity:
5% to 95% without condensation

Dimensions:
440 (L) × 285 (W) × 44.5 (H) mm

Machine weight:
<4Kg

Input voltage:
AC: 110~240V/50~60Hz

Power consumption:
<45W

Port aggregation:
supports 14 groups of aggregation, each group supports up to 16 ports,
supports static aggregation and dynamic aggregation

Port mirroring:
supports many-to-one port mirroring, with no limit on the number of mirror source ports

Loop protection:
support loop detection/loop avoidance

Ring network protocol :
Support industrial-grade ring network protocol ERPS

Port flow control:
support half-duplex based on back pressure control;

Port speed limit:
support full-duplex based on PAUSE frame;

IP routing:
Support port-based input/output bandwidth management,
support static routing;
dynamic routing supports RIP, OSPF;

QOS:
SP (Strict Priority), strict priority round-robin algorithm;
WFQ (Weighted Fair Queuing) weighted fair queuing;
WRR (Weighted Round Robin), weighted priority round-robin algorithm;
Random Early Detect (RED), random early detection algorithm;
Weighted Random Early Detection (WRED), weighted random early detection algorithm;
Head Of Line, anti-congestion mechanism;
Best-Effort Service, best effort service;
First come first served, first come first served algorithm;
802.1p port queue priority algorithm;
Cos/Tos, QOS tag;
Differentiated Service, differentiated service;

Network cable sequence:
Support Auto-MDIX function, automatically identify straight-through network cables and crossover network cables
System maintenance:
Support configuration file upload/download; Support upgrade package upload;
Support WEB restore factory configuration; Support system log function;
Support Ping;
Support WEB interface management (support http and https protocols);
Support CLI interface management; Support Telnet remote management;
Support SSH 2.0; Support SNMP network management;
Support RMON; Support NTP client;

VLAN:
supports up to 4096 VLANs;
supports port-based VLANs;
supports 802.1Q standard VLANs;
supports MAC VLANs;

Storm suppression:
support suppression of broadcast, multicast, unicast, etc.

Spanning tree:
support STP spanning tree protocol;
support RSTP rapid spanning tree protocol;
support MSTP multiple spanning tree protocol;

Supported protocol standards:
IEEE 802.3ad, link aggregation protocol;
IEEE 802.3, 10BASE-T Ethernet;
IEEE 802.3u, Fast Ethernet standard;
IEEE 802.3ab, Gigabit Ethernet standard;
IEEE 802.3z, Gigabit Ethernet fiber standard;
IEEE 802.3ae, 10G Ethernet standard;
IEEE 802.3x, full-duplex Ethernet data link layer flow control;
IEEE 802.3az, EEE energy-efficient Ethernet standard;

Negotiation mode:
Support port auto-negotiation function (auto-negotiation transmission rate and duplex mode)

Multicast control:
support IGMP Snooping;
support MVR (Multicast VLAN Registration) function;
support MLD Snooping (Multicast Listener Discovery Snooping);

Security features:
Hardware supports IP ACL, MAC ACL, VLAN ACL, and supports ACL functions based on layer 3 and layer 4;
hardware supports port-based IP+MAC binding;
supports IP Source Guard; supports ARP Detection function;
supports IEEE 802.1x port authentication; supports Radius authentication;
supports TACACS+ authentication; supports user hierarchical management and password protection;

MTBF:
300,000 hours

Warranty:
5 years
