RAL9005

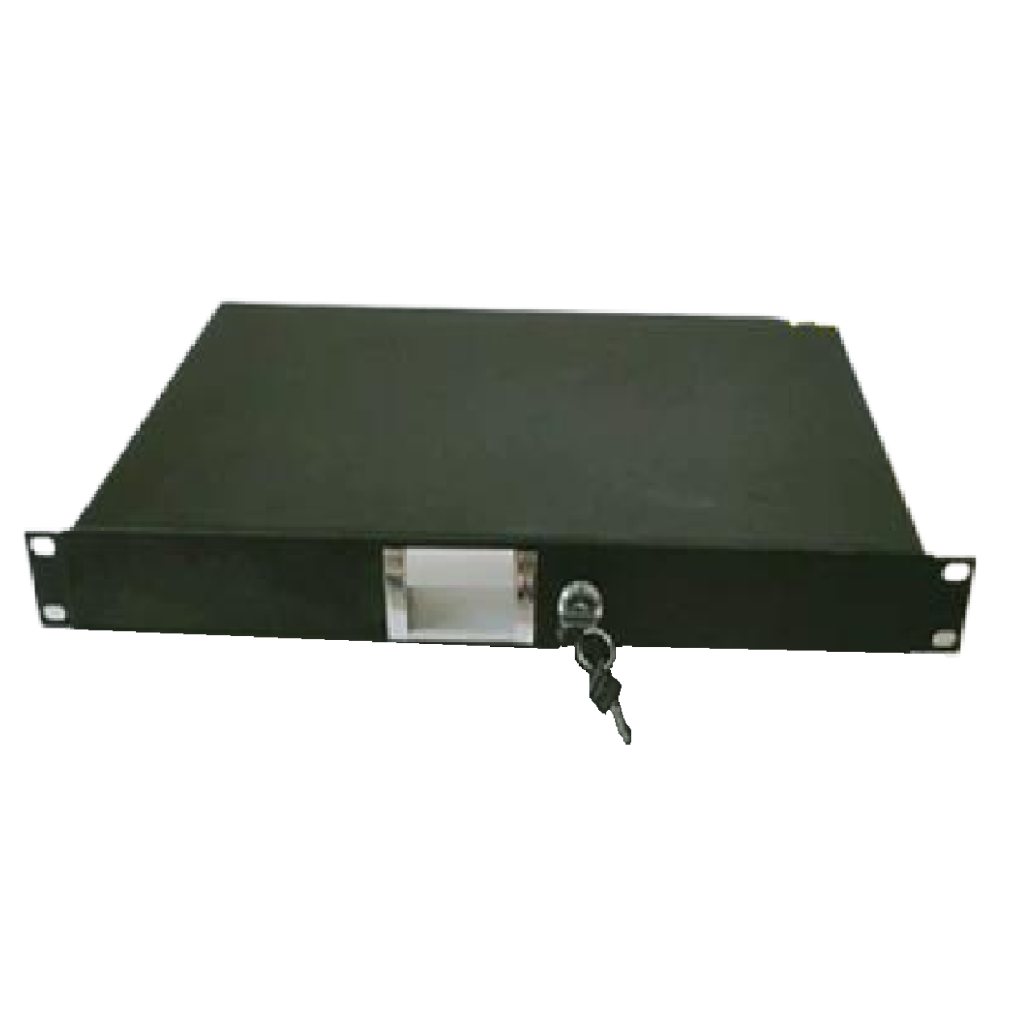

1U Rack Mount Cantilever 2 Post track rail Mount Server Rack Cabinet – 176lbs / 80kg

The RAL9005 1U Heavy Duty Rack Mount keyboard drawer for 2 Post track rail racks allows you to add a high capacity keyboard track rail to almost any standard 2 post track rail server rack.

The included mounting brackets can be adjusted to accommodate different post depths, making this 1U track rail a universal solution for 2 post rail rack storage. Constructed using 1.2mm SPCC commercial grade coldrolled steel, this durable 2 post rail rack can hold up to 80kg (176lbs) of equipment – a perfect solution for storing non-rackmount equipment, tools, peripherals or accessories in your rack to keep them readily accessible.

Backed by a 5 years limited warranty and free lifetime technical support.

Product Overview

Applications

Supply additional storage space for mission critical hardware and non-rack mount equipment

For use with most 19” wide, 2 Post Track Rail Server Racks

Features

4U, 2 Post Track Rail Rack
Fits all standard 19” 2 Post Track Rail Rack
SPCC 1.1mm Cold-rolled Steel construction
Front-mount design

Hardware

Hardware	Warranty	5
	Material	Steel
	Airflow Rate	Solid
	Cable Management	No
	Mounting Options	Front Mount
	U Height	1U
Physical Characteristics	Color	Black
	Material	Steel
	Maximum Mounting Depth	13.77 in [350 mm]
	Minimum Mounting Depth	13.77 in [350 mm]
	Product Height	45 mm
	Product Length	13.77 in [350 mm]
	Product Width	483 mm
	Rail Thickness	0.1 in [1.6 mm]
	Weight of Product	3.70 lb [1.68 kg]
Packaging Information	Package Height	2.36 in [6 cm]
	Package Length	14.5 in [37 cm]
	Package Width	21.6 in [55 cm]
	Shipping (Package) Weight	4.1 lb [1.88 kg]
