MiGi Standard

MiGi Standard – Solar Panel Power 50 / 70 / 100watt

MiGi Standard Solar panels are those devices which are used to absorb the sun’s rays and convert them into electricity or heat. Description: A solar panel is actually a collection of solar (or photovoltaic) cells, which can be used to generate electricity through photovoltaic effect.

Grade A 50watt, 70watt and 100watt Mono Crystalline Cell Monicrystalline solar panel 18Vmp18V system charger. It will take a 40 watt solar panel 7 days to charge a 100ah 12V battery. This is assuming the solar panel produces 200 watts a day. If the battery is discharged at 50%, it will take 3 to 4 days to charge.

50W solar panel with 18 open circuit voltage may produce 2.78A
70W solar panel with 18 open circuit voltage may produce 4.1A
100W solar panel with 18 open circuit voltage may produce 5.5A

Product Overview

Modular Design
– 5°/15°/25°/35°/45°/55° Adjustable Angles
– Intelligent Auxiliary Heating Technology
– Maximum Power Point Tracking (MPPT) Charging Controller
– NON App Remote Management
– Plug and Play Installation

Crystal Solar Panel
– Power 50W / 70W / 100W
– Voltage 18 V

Dimensions (L x W x H)
– 50W :540 x 510 x 25mm
– 70W : 671 x 540 x 25mm
– 100W :770 x 671 x 25mm

Angle adjustment (manually)
– Range 5°/15°/25°/35°/45°/55°

Battery Type – LifePO4
Intelligent Auxiliary Heat – Yes
Battery Capacity – upto 60,000mAh
Voltage 18 V
Output Voltage Jack – 12.6 V / 23.8 V or PoE 23.8V
Battery Life – More than max. up to 2,000 to 10,000 cycles
Charging Condition
-30°C ~ 65°C
-30°C~65°C (With intelligent auxiliary heating)

Discharging Condition
-20°C~60°C
-30°C~60°C (With intelligent auxiliary heating)

Hardware Interface
2 × USB Power 5V

Optional Selection
1 × 10/100/1000 Mbps RJ45 POE Power
/ 23.8V CAT6 (IP66)
1 × Photovoltaic Panel Connector
1 × 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A,
#3: 12 VDC/2A)

Software Features
– No

(Available in MIGI Premium & MIGI Pro Series)

Load Control
– Yes
High & Low Temperature Protection
-Yes
Over discharge Protection
– Yes
Power Consumption Statistics
– Yes
Displays Real-time Load Status
– Yes
Battery Level Display
– No
Time Zone Selection
– No
Region Selection
– No
Schedule Saving
– No
Firmware Remote Update
– No
Remote Reboot
– No
Local LAN Management
– No
Smart Charging Control
-30°C~5°C
Account Management
No
Web Management
– No
Remote Reset
– No
Remote Message Push
– No

Certification
– CB, PSE (Battery)
– CE, FCC, VCCI, IC, IP65

Package Contents
– MIGI Standard Series C50WS / C70WS / C100WS
– Quick Start Guide
– Waterproof Cable Attachments
– Mounting Accessories

Weight
– Product weight: 16 kg
– Package weight: 19kg

Environment
– Operating Temperature: -30°C-65°C (With intelligent auxiliary heating)
– Operating Humidity: 10%~90%RH, Non-condensing

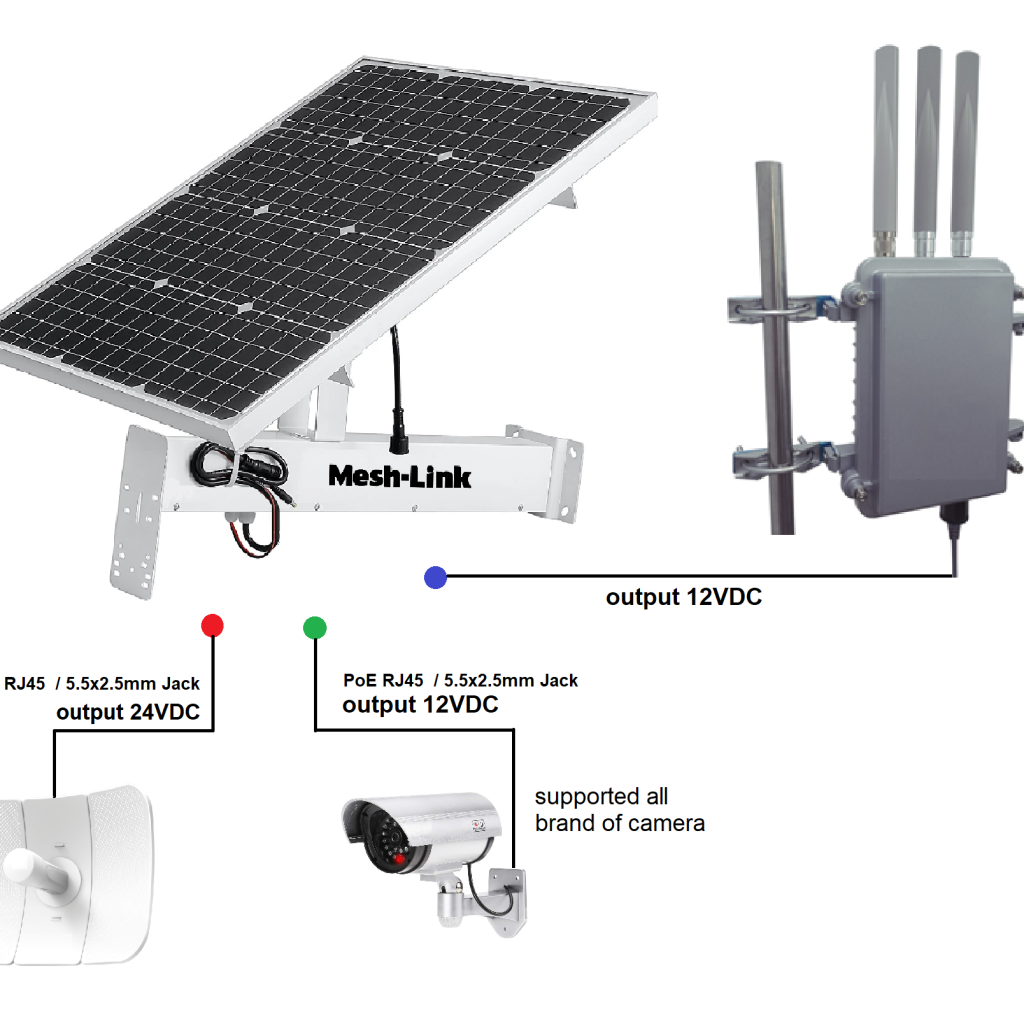

Connection Diagram

5.5 x 2.5mm Jack or RJ45 POE power are widely used in all type of outdoor devices such like Internet for wireless AP access, surveillance camera access or other equipment that requires POE power supply. They provide remote power supply in POE and POE+ mode, solving the problem of power cables being unable to be laid or being inaccessible to the greatest extent.

Specification

Product name: MIGI Standard Solar Solution Series
Product model: MIGI Standard
Product description: Solar Power for CCTV camera, AP, Modem
Lightning protection level: Level 3 lightning protection
Battery : LifePo4 10Ah, 20Ah, 30Ah, 50Ah, 60Ah
MPPT : Standard Solar controller
Port : 2 x USB and 5.5 x 2.5mm Jack / RJ45 PoE connector
Supported protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Working environment: Temperature: -30℃~75℃, Humidity: 0~95% (no condensation)
Power supply: built-in power adapter
DC Power output : 12V / 24V
Weight: 15KG/set
Origin: Shenzhen, China

Model Series

50watt Solar Panel + Standard MPPT + 10AH LifePo4 battery + IP67 Chasis MIGI C50WS-10A
50watt Solar Panel + Standard MPPT + 20AH LifePo4 battery + IP67 Chasis MIGI C50WS-20A
50watt Solar Panel + Standard MPPT + 30AH LifePo4 battery + IP67 Chasis MIGI C50WS-30A
50watt Solar Panel + Standard MPPT + 40AH LifePo4 battery + IP67 Chasis MIGI C50WS-40A
70watt Solar Panel + Standard MPPT + 30AH LifePo4 battery + IP67 Chasis MIGI C70WS-30A
70watt Solar Panel + Standard MPPT + 40AH LifePo4 battery + IP67 Chasis MIGI C70WS-40A
70watt Solar Panel + Standard MPPT + 50AH LifePo4 battery + IP67 Chasis MIGI C70WS-50A
70watt Solar Panel + Standard MPPT + 60AH LifePo4 battery + IP67 Chasis MIGI C70WS-60A
100watt Solar Panel + Standard MPPT + 10AH LifePo4 battery + IP67 Chasis MIGI C100WS-30A
100watt Solar Panel + Standard MPPT + 10AH LifePo4 battery + IP67 Chasis MIGI C100WS-40A
100watt Solar Panel + Standard MPPT + 10AH LifePo4 battery + IP67 Chasis MIGI C100WS-50A
100watt Solar Panel + Standard MPPT + 10AH LifePo4 battery + IP67 Chasis MIGI C100WS-60A
