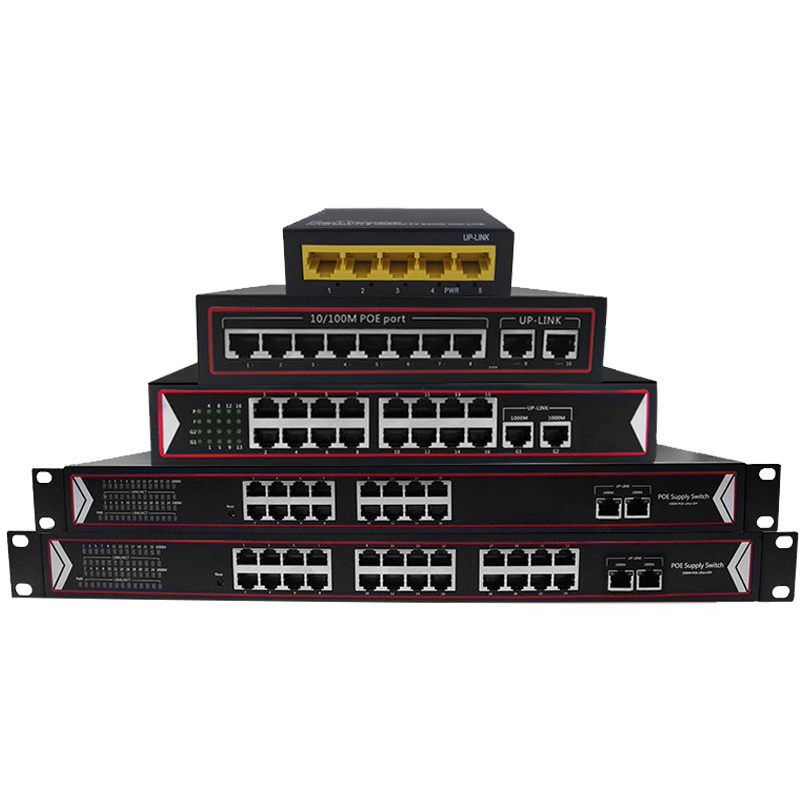

Gigabit 4-24 port standard POE power supply switch

Gigabit 4-24 port standard POE power supply switch

The TX8-24GEPS4T-M-SFP switch is a 10G three-layer industrial Ethernet switch launched by our company.

The product complies with FCC, CE, and RoHS standards. It can provide 24 Gigabit PoE ports, and all PoE ports comply with IEEE802.3af/at standards.

It has advanced hardware processing capabilities and the richest business features.

It supports IPv4/IPv6 hardware dual stacks and line-speed forwarding, allowing customers to calmly cope with the upcoming IPv6 era.

It provides high-capacity switching capabilities. The TX8-24GEPS4T-M-SFP switch has an operating temperature of -40℃ to 80℃, and has super ruggedness and can adapt to various harsh environments.

The rail-mounted installation feature and wide temperature operation make the TX8-24GEPS4T-M-SFP switch a plug-and-play industrial-grade device, providing users with a reliable and convenient solution for networking Ethernet devices.

Product Details
  • Ethernet UTP interface
    Speed: 100M or 1000M, full duplex, half duplex fully adaptive
    Protocol: Support IEEE 802.3, IEEE 802.1Q (VLAN)
    MAC address table: can learn 4096 MAC addresses
    Physical interface: RJ45 socket supports AUTO-MDIX (cross line and straight line adaptive)
  • Ethernet POE features
    PoE standard: IEEE 802.3af (port output power 15.4W)
    PoE Type: End Spanning
    PoE port characteristics: port output power 15.4W (IEEE802.3af)
    PoE transmission core: 1/2+, 3/6-wire pairs (4/5+, 7/8-wire pairs optional)
  • Electrical and mechanical characteristics
    System power supply: AC180V ~ 260V; DC –48V; DC +24V
    Power consumption: ≤5W
    Appearance structure: Rack type (can be mounted on a cabinet)
  • Working environment
    Working temperature: -10℃ ~50℃
    Working humidity: 5% ~ 95% (non-condensing)
    Storage temperature: -40℃~80℃
    Storage humidity: 5%~95% (no condensation)
Product Features
  • Automatically adapt to 100Mbps and 1000Mbps environments to facilitate network upgrades;
  • The device provides 24 Ethernet electrical ports and 2 Ethernet optical ports;
  • Ethernet port supports standard IEEE802.3af power supply;
  • The maximum power of the Ethernet power supply port is 15.4W;
  • Support full-duplex and half-duplex network communications, with automatic negotiation capability
Connection Diagram

POE switches are widely used in education, medical, government, finance, electricity, operators and the Internet for wireless AP access, surveillance camera access or other equipment that requires POE power supply. They provide remote power supply in POE and POE+ mode, solving the problem of power cables being unable to be laid or being inaccessible to the greatest extent.

Specification

Technical parameter list

Detailed parameter description

Powered by

Power supply

Mains power supply

Input voltage

AC100-240V 50-60Hz

Power consumption

The machine itself consumes less than 15W

Total power consumption is less than 370W

Port parameters

network port

1~24 Downlink network port: 10/100Mbps

2 uplink optical ports 1.25Gbps/SFP

2 Uplink network ports: 10/100/1000Mbps

Transmission distance

1~24 downstream POE network port: 100 meters

Uplink network port: less than 100 meters

Transmission medium

1~24 downstream network ports: Cat5e/6 standard UTP network cable,

Uplink optical port: optical fiber/SFP

Uplink electrical port: Cat5e/6 standard UTP network cable

POE Standards

Comply with IEEE 802.3af/at international standards, single-port maximum power supply 30W

PoE power supply mode

End-Spanning Method

PoE power supply

Single POE port ≤15.4W, whole device <370W

Exchange Parameters

Web Standards

IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3az, IEEE802.1Q (VLAN), IEEE 802.1w (RSTP), IEEE 802.3af/at

Backplane bandwidth

8-52Gbps

Forwarding method

Store and Forward

Forwarding rate

10Mbps:14880pps, 100Mbps:148800pps

Packet Data Cache

6.5M

MAC address table

4K

Status Indicator

Power Indicator

1 power indicator (green)

Fiber optic indicator light

GF port green light

Uplink port indicator light

25,26

Ultra long distance transmission indicator light

1 indicates CCTV (green)

POE power supply port LED

PoE status indicator 24 yellow lights

Network data port LED

Data status indication 24 green lights

Protection level

Communication port lightning protection

4KV Implementation standard: IEC61000-4-5

Environmental Specifications

Operating temperature

-20℃~60℃

Storage temperature

-40℃~70℃

Humidity (non-condensing)

5~95%

reliability

Mean Time Between Failures (MTBF)

＞50000h

Model

Descriptions

TX 7 – POE-4E

100M 4-port POE + 2 100M network ports, built-in power supply 60W, standard power supply, desktop, backplane bandwidth 1.2Gbps, whole machine power ≤ 60W, single port power 15.4W, power supply protocol IEEE802.3AF/AT

TX7-POE-8E2GE

100M 8-port POE + 2 Gigabit uplink ports, external power supply 48V3A, standard power supply, desktop backplane bandwidth 5.6Gbps, whole machine power ≤ 96W, single port power 15.4W, power supply protocol IEEE802.3AF/AT

TX 7 – POE-8E2GE

100M 8-port POE + 2 Gigabit uplink ports, built-in power supply 90W, standard power supply, desktop, backplane bandwidth 5.6Gbps, whole machine power ≤ 96W, single port power 15.4W, power supply protocol IEEE802.3AF/AT

TX7-POE-4GE

Gigabit 4-port POE + 1 Gigabit network port, external power supply 60W, standard power supply, desktop , backplane bandwidth 12Gbps, whole machine power ≤ 60W, single port power 15.4W, power supply protocol IEEE802.3AF/AT

TX7-POE-8GE

Gigabit 8-port POE + 2 Gigabit uplink ports, external power supply 48V3A, standard power supply, desktop backplane bandwidth 20Gbps, whole machine power ≤ 96W, single port power 15.4W, power supply protocol IEEE802.3AF/AT

TX7-POE-8GE

Gigabit 8-port POE+ 8 Gigabit uplink ports, built-in power supply 90W, standard power supply, desktop , backplane bandwidth 20Gbps, whole machine power ≤ 96W, single port power 15.4W, power supply protocol IEEE802.3AF/AT

TX7-POE-12E

100M 12-port POE + 2 100M network ports, external power supply 48V3A, standard power supply, desktop , backplane bandwidth 2.8Gbps, whole machine power ≤ 120W, single port power 15.4W, power supply protocol IEEE802.3AF/AT

TX7-POE-12GE

Gigabit 12-port POE + 2 Gigabit uplink ports, external power supply 120W, standard power supply, desktop , backplane bandwidth 16Gbps, whole machine power ≤ 120W, single port power 15.4W, power supply protocol IEEE802.3AF/AT

TX7-POE-16E2GE

100M 16-port POE + 2 Gigabit Ethernet ports, built-in power supply 150W, standard power supply, independent , backplane bandwidth 7.2Gbps, whole machine power ≤ 150W, single port power 15.4W, power supply protocol IEEE802.3AF/AT

TX7-POE-16E2GE

100M 16-port POE + 2 Gigabit Ethernet ports, built-in power supply 260W, standard power supply, rack-mounted, backplane bandwidth 7.2Gbps, total power ≤ 260W, single-port power 15.4W, power supply protocol IEEE802.3AF/AT

TX7-POE-16E2GE

100M 16-port POE + 2 Gigabit Ethernet ports, built-in power supply 400W, standard power supply, rack-mounted, backplane bandwidth 7.2Gbps, total power ≤ 400W, single-port power 15.4W, power supply protocol IEEE802.3AF/AT

TX7-POE-16GE

Gigabit 16-port POE + 2 Gigabit network ports, built-in power supply 260W, standard power supply, rack-mounted, backplane bandwidth 36Gbps, whole machine power ≤ 260W, single port power 15.4W, power supply protocol IEEE802.3AF/AT

TX7-POE-16GE

Gigabit 16-port POE + 2 Gigabit network ports, built-in power supply 400W, standard power supply, rack-mounted, backplane bandwidth 36Gbps, whole machine power ≤ 400W, single port power 15.4W, power supply protocol IEEE802.3AF/AT

TX7-POE-24E4GE

100M 24-port POE + 4 Gigabit Ethernet ports, built-in power supply 400W, standard power supply, rack-mounted, backplane bandwidth 8.8Gbps, total power ≤ 400W, single-port power 15.4W, power supply protocol IEEE802.3AF/AT

TX7-POE-24GE

Gigabit 24-port POE + 2 Gigabit uplink ports, built-in power supply 260W, standard power supply, rack-mounted, backplane bandwidth 52Gbps, total power ≤ 260W, single-port power 15.4W, power supply protocol IEEE802.3AF/AT

TX7-POE-24GE

Gigabit 24-port POE + 2 Gigabit uplink ports, built-in power supply 400W, standard power supply, rack-mounted, backplane bandwidth 52Gbps, whole machine power ≤ 400W, single port power 15.4W, power supply protocol IEEE802.3AF/AT

Download Product Specifications Detail
