4G MODEM
| 型号DEVICE | C300 CPE | ||||
| Hardware Platform | 类型Type | 4G LTE CPE | |||
| 联发科芯片 MTK Chipset | MT6735 | ||||
| 存储器 | 4GByte EMMC+512MByte DDR2 | ||||
| 频段Band | FDD operating band B1,B3,B5,B7,B8,B20 | TDD operating band B38,B39,B40,B41 | WCDMA:B1,B2,B5,B8 EVDO:BC0 TD-SCDMA:B34,B39,B40 | GSM:850,900,1800,1900 | |
| 分集频段 Diversity Band | FDD operating band B1,B3,B5,B7,B20 | TDD operating band B38,B39,B40,B41 | WCDMA:B1,B5 EVDO:BC0 TD-SCDMA:NA | NA | |
| 3GPP | 3GPP R9 Cat.4 | 3GPP R9 Cat.4 | 3GPP R7&R8 HSDPA Cat.24(64QAM) HSUPA Cat.7(16QAM) TD-HSDPA Cat.14 TD-HSUPA Cat.6 EVDO Revision 1 and A | ||
| 传输速率 Transfer rate | up to 150Mbps DL up to 50Mbps UL | up to 150Mbps DL up to 50Mbps UL | HSDPA up to 42.2Mbps DL HSUPA up to 11.5Mbps UL EVDO up to 3.1Mbps DL EVDO up to 1.8Mbps UL TD-HSDPA up to2.8Mbps DL TD-HSUPA up to2.2Mbps | up to 384kbps DL up to 192kbps UL | |
| LAN Net mouth | up to 100Mbps | ||||
| Wi-Fi Chipset | MT6625 | ||||
| Wi-Fi | IEEE 802.11b/g/n | ||||
| Wi-Fi Transfer rate | up to 150Mbps | ||||
| Encryption | Wi-Fi Protected Access™ (WPA/WPA2)2 | ||||
| GPS | No GPS | ||||
| Software Platform | System | Android 6.0 | |||
| LED | SIGNAL, WiFi, LAN and Power indication。 | ||||

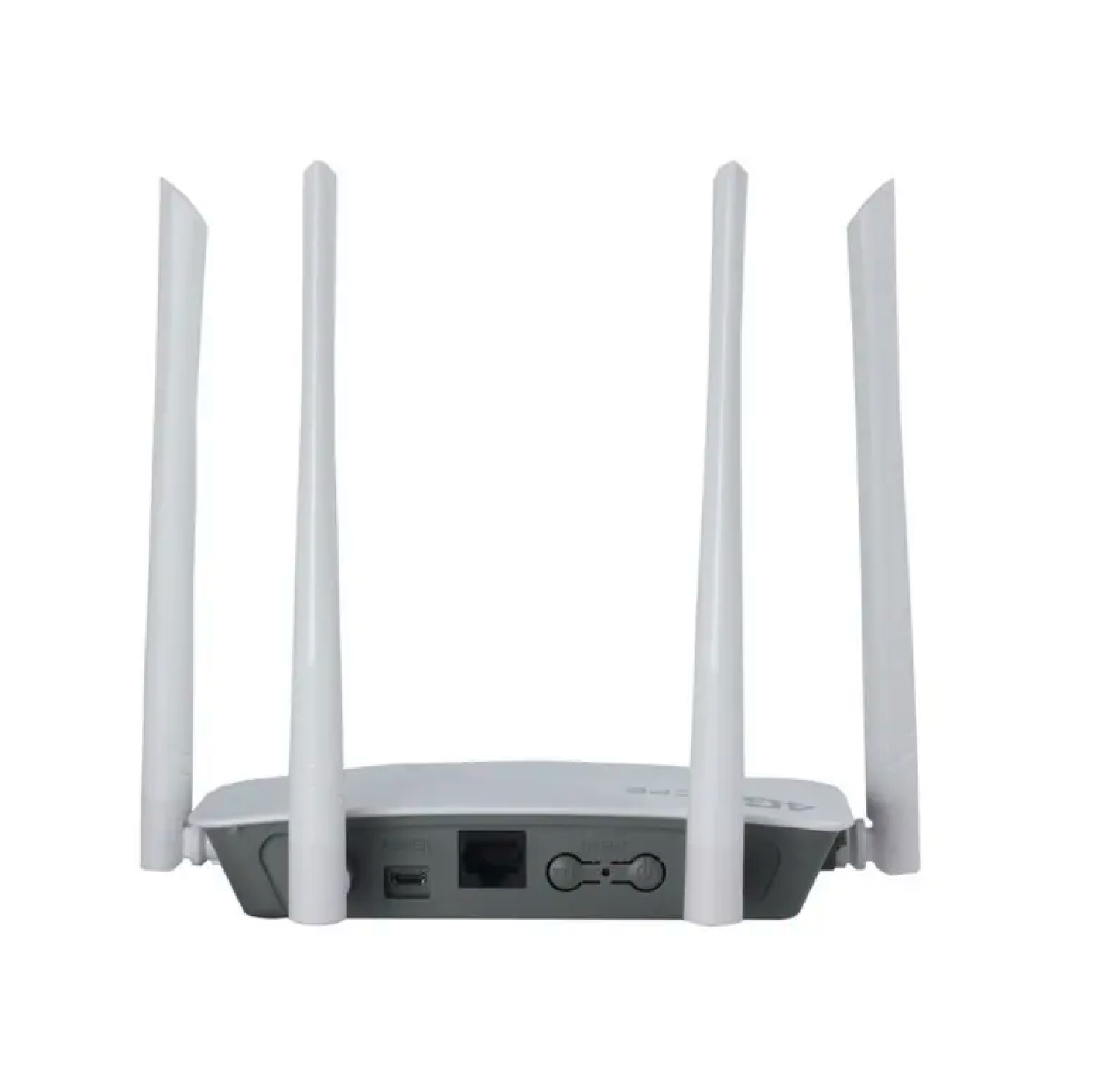

| interface | Micro usb | 1.5A Charge IN | |||
| Lightning | 1.5A Charge IN | ||||

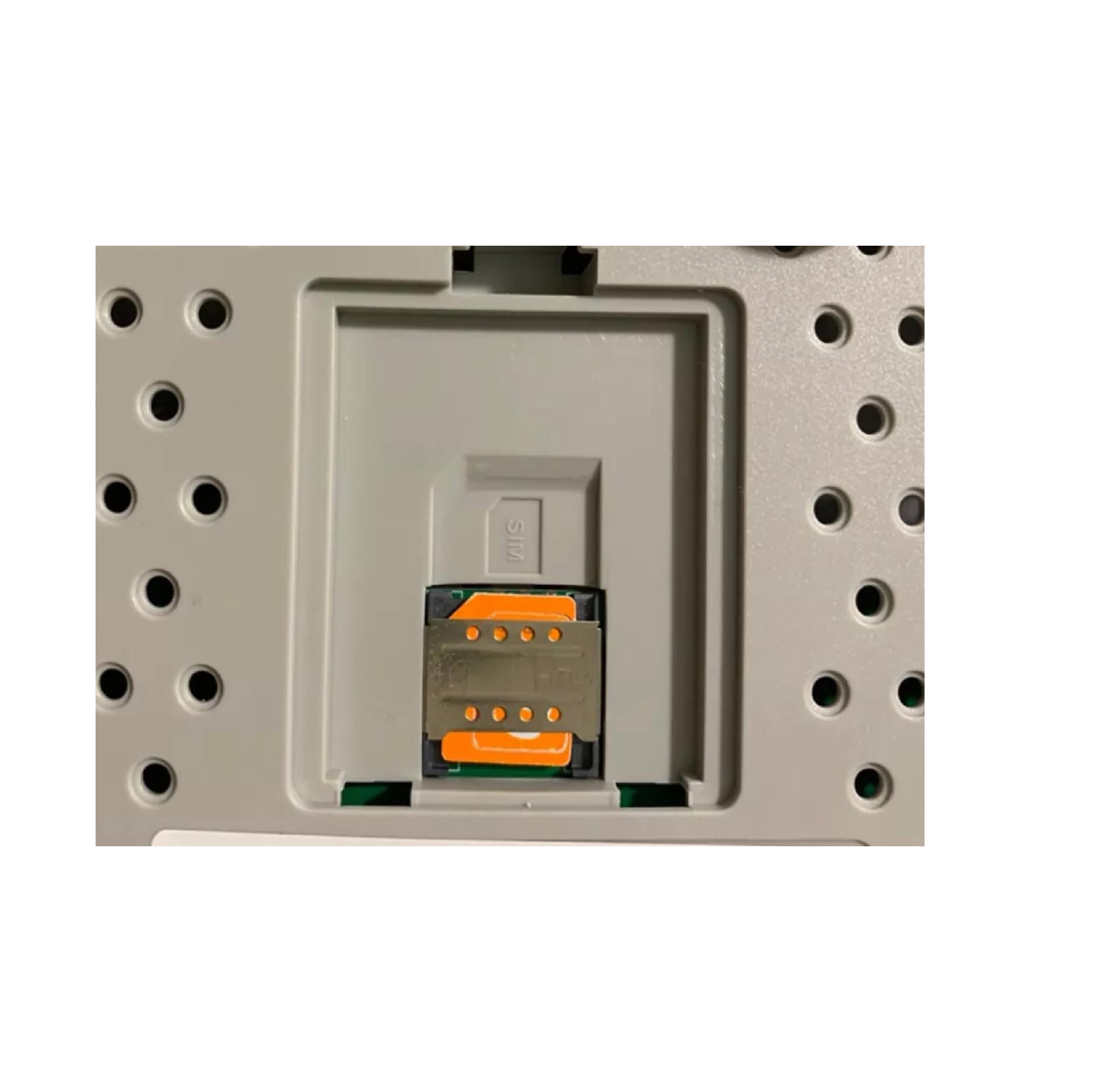

| SIM | Micro SIM card | ||||
